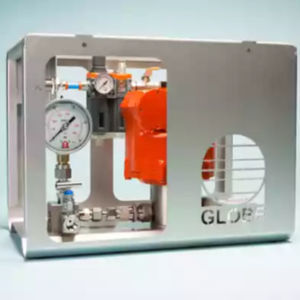

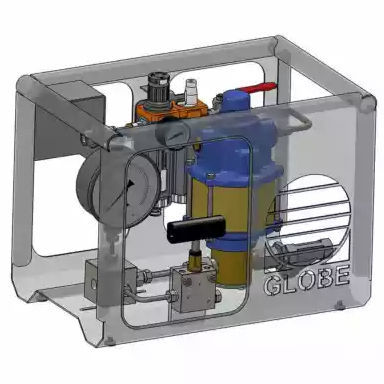

Air-driven pressure test unit APU SC10-4 series

mobile

The APU SC10-4 Series (Small) is the smallest and most compact model within the air-driven high pressure test systems from GLOBE Test Equipment. This system is specifically designed for situations where accuracy and mobility are key, without compromising on safety or performance. With a maximum working pressure of 1540 bar (22,330 psi), it is highly suitable for hydrostatic testing on smaller pressure-containing components such as hoses, small cylinders, pipe sections and compact modules. Robust and Reliable Design Despite its compact size, the APU Small is built from high-grade stainless steel components and a solid stainless steel frame. This ensures long service life, corrosion resistance and reliable operation, even under intensive use. The glycerine-filled pressure gauge provides a smooth and accurate pressure reading during every test. Specifications & Performance Portable: Yes Ratio: 5:1 to 220:1 Maximum working pressure: 35 to 1540 bar Volume per stroke: 42.44 to 1 cc Flow rate: 12 to 0.35 l/min Options Extra handles or wheels for easy transport Test certificate Digital display for clear pressure indication Pressure transmitter for data logging and measurement systems
