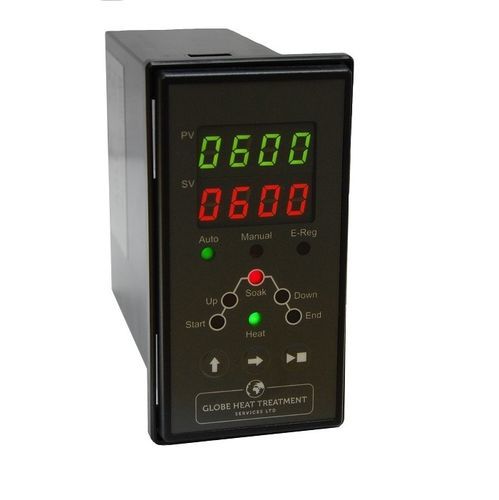

Digital temperature controller P159TDA

dual-displayprogrammablesingle-channel

Product description:
P159TDA: digital mini temperature controller and programmer, single-channel, panel-mounted for industrial heat treatment applications.

Overview:
The P159TDA is a single-channel, panel-mounted temperature controller and programmer designed for integration with Globe heat treatment units. It executes programmable temperature profiles to control heating and cooling cycles with precision up to 1200°C.

Applications:
Designed for programming and controlling post-weld heat treatment (PWHT) and preheating of pipe welds and welded fabrications in industrial welding and fabrication environments, up to 1200°C.

Features:

• Programmable profile including start temperature, ramp-up rate, hold temperature, hold time, ramp-down rate and end temperature.
• Twin digital displays showing PV (process value — actual workpiece temperature) and SV (setpoint value — target temperature).
• User-selectable deviation alarm output (can be configured as overtemperature alarm or interpass temperature warning).
• Includes two mounting clips and two ferrite sleeves for installation and EMI suppression.
• Four operating modes to suit different control strategies.

Technical specifications:

• Model: P159TDA
• Product code / Group: GHT3047
• SKU: ght3047
• Type: Single-channel temperature controller & programmer
• Mounting: Panel mounted
• Supply voltage: 230V
• Intended use: Programming and controlling PWHT and preheating of pipe welds and welded fabrications
• Maximum application temperature: up to 1200°C
• Program elements: start temperature, ramp-up rate, hold temperature, hold time, ramp-down rate, end temperature
• Displays: Twin digital displays for PV and SV
• Alarm: User-selectable deviation alarm output
• Included accessories: Two mounting clips and two ferrite sleeves
• Operating modes: Four
