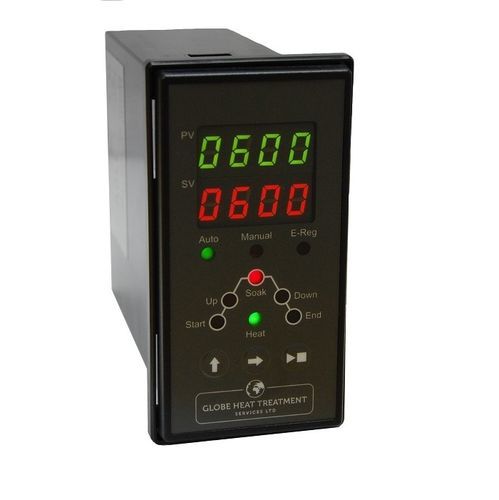

Digital temperature controller P159TDA

dual-displayprogrammablesingle-channel

Product Description:
The P159TDA is a single-channel, panel-mounted temperature controller and programmer used in Globe's range of heat treatment units.

Applications:
For programming and controlling the post weld heat treatment and preheating of pipe welds and welded fabrications up to 1200°C.

Features:

• The program contains a start temperature, ramp up rate, hold temperature, hold time, ramp down rate and end temperature.
• Twin digital displays indicating the process value (PV) i.e. actual workpiece temperature and the setpoint value (SV) i.e. the target temperature of each point in the process.
• Deviation alarm output, user selectable (e.g. can be used as an overtemperature alarm output, or welding interpass temperature reached warning etc).
• Each unit includes two mounting clips and two ferrite sleeves.
• Four operating modes.

Technical specifications:

• Model: P159TDA
• Product code / Group: GHT3047
• SKU: ght3047
• Product ID (site): 665
• Variant ID: 323
• Single-channel, panel-mounted temperature controller and programmer
• Intended application temperature up to 1200°C (for post-weld heat treatment and preheating)
• Program steps: start temperature, ramp up, hold temperature, hold time, ramp down, end temperature
• Twin digital PV and SV displays
• Selectable deviation alarm output (user configurable)
• Includes two mounting clips and two ferrite sleeves
• Four operating modes
