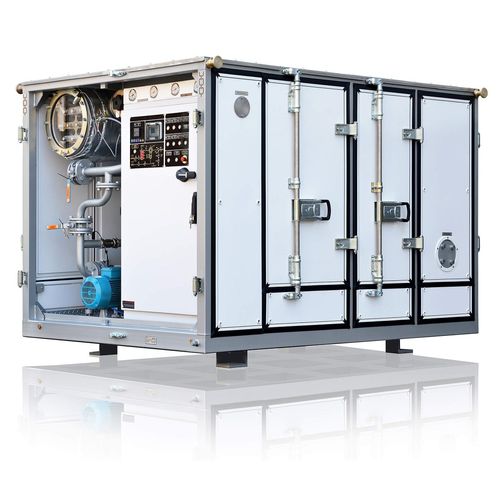

Vacuum degassing unit CMM-12A

The CMM-12А is designed for degassing, heating and filtration of mineral transformer oil, as well as for transformer evacuation. UNIT COMPOSITION The CMM-12A is built in a frame enclosure with lockable doors, and consists of the following primary component parts: pumps (input, output, vacuum, backing pumps); vacuum chamber; oil heater; filters; electrical control cabinet; piping. MODES OF OPERATION The CMM-12A can be operated in the following modes: Oil degassing. Oil is pumped through the filter and the heater into the vacuum chamber. The oil is pumped from the vacuum chamber through another filter and to the unit’s outlet. The backing and the vacuum pumps create high vacuum in the chamber, which facilitates the removal of gas and water from the oil in the chamber. Transformer heating. In this mode the oil is pumped through the filter, the heater and another filter to the outlet of the machine. The oil is filtered and transformer windings are heated in this mode. Transformer evacuation. In this mode the air from the transformer is evacuated by the backing and the vacuum pumps.
