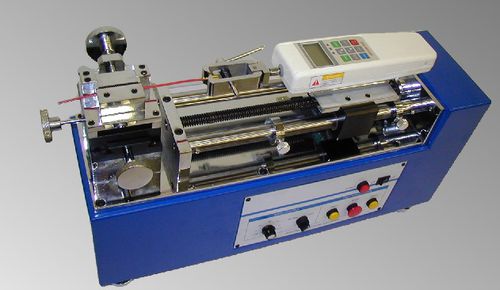

Digital dynamometer GM100

high-precision

The DIGITAL MOTORIZED DYNAMOMETER GM100 is designed for tensile strength testing of wire terminals in accordance with normes. The traction speed of the DIGITAL MOTORIZED DYNAMOMETER GM100 is constant and adjustable. Its operation is easy and safe, with automatic detection of maximum value, high precision and excellent reproducibility of results. Suitable for CRIMP QUALITY CONTROL in laboratory and production. A universal pliers allows quick locking of any terminal to be tested on the DIGITAL MOTORIZED DYNAMOMETER GM100. STROKE : 560 mm SPEED : 25 - 230 mm/min RISOLUTION : 0,1n VALUE ERROR : +/- 0,5% F.S UNIT : N|kgf|Lbf WEIGHT : 25 KG c.a. INTERFACE : RS232 ALIMENTATION : Ni-Cd 4,8 V 600 mAh DIMENSIONS : 260x400x900 mm
