Digital dynamometer GM50
with data logger

digital dynamometer
digital dynamometer
digital dynamometer
Add to favorites
Compare this product


Characteristics

Type
digital
Options and accessories
with data logger
Rated force

Min.: 0 N

Max.: 500 N

Description

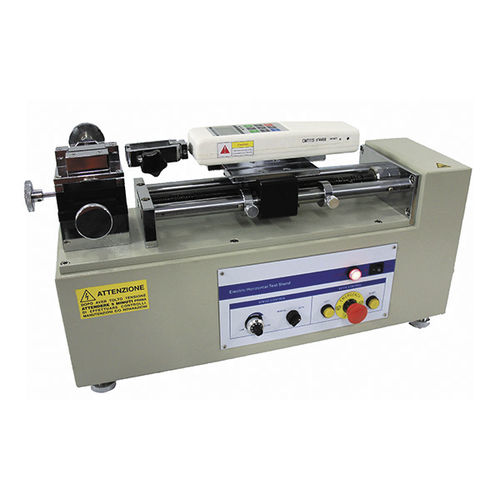

The DIGITAL MOTORIZED DYNAMOMETER GM50 is designed for tensile strength testing of wire terminals in accordance with normes. The pull speed is adjustable. The DIGITAL MOTORIZED DYNAMOMETER GM50 is easy to use, with automatic peak value recording, very hight accuracy and in production facilities. Test samples are inserted into the clamp covering all the prevalent wire diameter and terminal types. The instrumenti have an RS232 communication port and software for data logging.Is possible with optional accessory to make also insertion force test. RISOLUTION : 0,1 N SECTION : From 0,32 to 6 mm2 TIGHTENING : From 0,1 to 10 mm PRECISION : +/- 0,5% F.S UNIT OF MEASURE : N|kgf|Lbf TEMPERATURE : 20 +/- 10°C INTERFACE : RS232 POWER : Ni-Cd 4,8 V 600 mAh DIMENSIONS : 570X180X330 mm WEIGHT : 25 Kg

Catalogs

GM50
GM50
1 Pages
GM50 S
GM50 S
1 Pages
