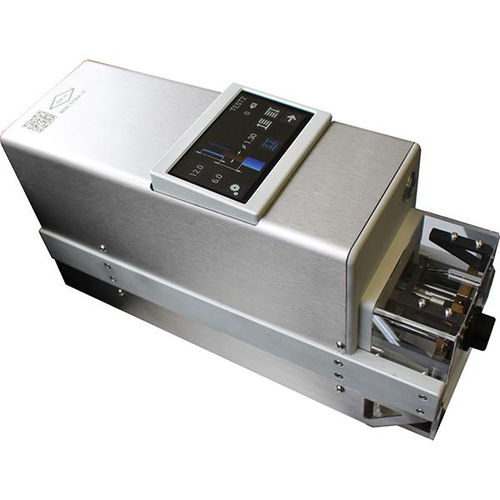

Electrical cable stripping machine BERI.STRIP.IT

bench-topprogrammable

The ELECTRONICS STRIPPING MACHINE BERI.STRIP.IT is suitable for the stripping of previously severed cables or for the peeling of internal conductors of ELECTRONICS STRIPPING MACHINE BERI.STRIP.IT It is a compact and light machine with a fully electronic operation, through the touch-screen control panel of the ELECTRONICS STRIPPING MACHINE BERI.STRIP.IT it is possible to set the working parameters of the CABLES, memorize the various types and recall the stored program. It is possible to machine round cable up to ø 5 mm and flat cables up to 8 mm of width. The machine is supplied complete with all the accessories and the instruction manual. ALIMENTATION - Monophase 230 V 50/60 Hz PNEUMATIC ALIMENTATION - No ABSORBMENT - 300 W STRIPPING LENGTH - 1,5÷20 mm WORKABLE SECTIONS - 0,15÷4 mm² MAX DIAMETER - Till to 5,1 mm MIN CABLE ENGTH - 22 mm + Strip TOLERANCE - <= 0,002 xL (L=Stripping Length) DISPLAY - Touch Screen LCD Liquid Cristal Display MEMORY - 100 Programs WEIGHT - 8,9 Kg DIMENSIONS - 125x370x220 mm (WxDxH)
