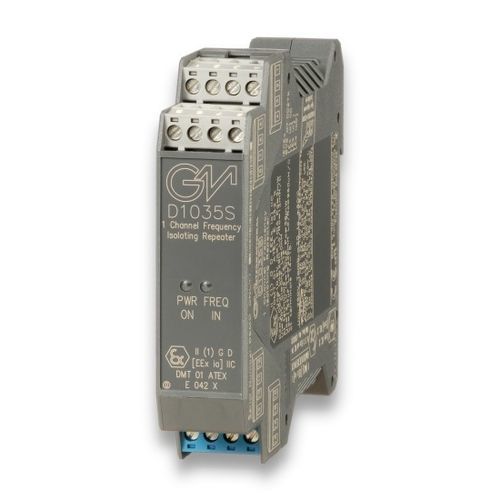

Current repeater D1035S

isolatedDIN rail

The single channel DIN Rail Frequency-Pulse Repeater D1035S repeats a low level frequency signal from magnetic pick-up, contact, proximity, open-collector transistor sensor, TTL CMOS located in Hazardous Area, into pulse signal to drive a Safe Area load.Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.Magnetic pick-up or proximity input sensor.Input frequency range from 0 to 50 KHz.Three port isolation, Input/Output/Supply.EMC Compatibility to EN61000-6-2, EN61000-6-4.In-field programmability by DIP Switch.250 Vrms (Um) max. voltage allowed to the Instruments associated with the barrier.Technical Specifications:Supply: 12-24 Vdc nom (10 to 30 Vdc), reverse polarity protected, ripple within voltage limits ≤ 5 Vpp.Current Consumption: 40 mA @24 V with output transistor energized.Power Dissipation: 1.0 W with 24 V supply voltage and output transistor energized.Max. power consumption: at 30 V supply voltage, output transistor energized, 1.2 W.Input Type: magnetic pick-up, contact, proximity to EN60947-5-6, open-collector transistor for frequency signals up to 50 KHz, TTL CMOS.Input range: 0 to 50 KHz maximum.Magnetic pick-up sensitivity: ≥ 20 mVpp up to 100 Hz input, ≥ 50 mVpp up to 1 KHz, ≥ 100 mVpp up to 5 KHz, ≥ 500 mVpp up to 20 KHz, ≥ 1 Vpp up to 50 KHz.Switching current levels: ON ≥ 2.1 mA, OFF ≤ 1.2 mA, switch current ≈ 1.65 mA ± 0.2 mA hysteresis (for proximity or transistor input)Input equivalent source: 8 V 1 KΩ typical (8 V no load, 8 mA short circuit).Output Type: voltage free SPST optocoupled open-collector transistor.Open-collector rating: 100 mA at 35 V (≤ 1.5 V voltage drop).Leakage current: ≤ 50 µA at 35 V.Frequency response: 50 KHz maximum.Isolation Test Voltage: I.S. In/Out 1.5 KV; I.S. In/Supply 1.5 KV; Out/Supply 500 V.Operating temperature limits: -20 to +60 °C, relative humidity max 90% non condensing, up to 35 °C.Storage temperature limits: -45 to +80 °C.Safety parameters: Uo/Voc = 10.9 V, Io/Isc = 1.1 mA, Po/Po = 3 mW at terminals 13-16. Uo/Voc = 15.5 V, Io/Isc = 13 mA, Po/Po = 48 mW at terminals 14-15. Uo/Voc = 10.9 V, Io/Isc = 23 mA, Po/Po = 60 mW at terminals 15-16. Ui/Vmax = 30 V, Ci = 0 nF, Li = 0 nH at terminals 13-16. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C.Mounting: EN/IEC60715 TH 35 DIN-Rail.Weight: about 145 g.Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm².Location: Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation.Protection class: IP 20.Dimensions: Width 22.5 mm, Depth 99 mm, Height 114.5 mm.Channels: 1Status: ACTIVE
