Pulse signal isolator-converter D1060S

digitalanalogrepeater

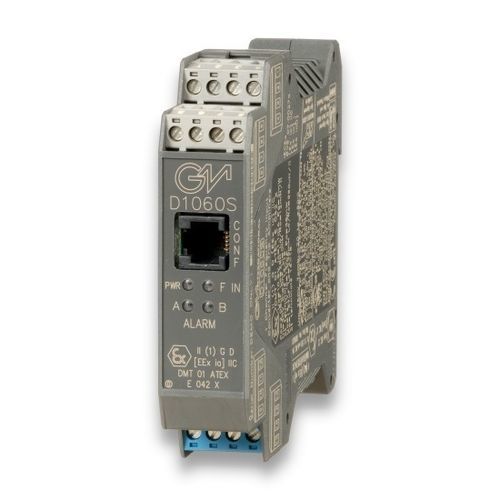

The single channel DIN-Rail Frequency-Pulse Converter, Repeater and Trip Amplifiers D1060S converts and repeats a low level frequency signal from magnetic pick-up, contact, proximity, open-collector transistor sensor, TTL CMOS located in Hazardous Area, into a 0/4-20 mA or 0/1-5 V or 0/2-10 V signal to drive a Safe Area load. Repeater output can be direct, divided by 10, 100, 1000, 10000, 100000, 1000000 or programmed with alarm function. One independent Alarm Trip Amplifier is also provided. Alarm energizes, or de-energizes, an SPST optocoupled open-collector transistor for high, low or low-startup alarm functions. The alarm trip point is settable over the entire input signal range. When repeater output is used as alarm output the unit provides two independent alarms.Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.Magnetic pick-up, proximity input sensor.Frequency range DC to 50 KHz input.Repeater output direct or divided by 10, 100, 1000, 10000, 100000 or 1000000.0/4-20 mA, 0/1-5 V, 0/2-10 V Output Signal linear or reverse.High Accuracy, µP controlled converter.Three port isolation, Input/Output/Supply.EMC Compatibility to EN61000-6-2, EN61000-6-4.Fully programmable operating parameters.High Density, 1 channel converter, repeater and trip amplifier per unit.250 Vrms (Um) max. voltage allowed to the Instruments associated with the barrier.Status: SPARE-ONLYNext: OBSOLETE (2025-12-31)Channels: 1Technical Data:SupplyVoltage12-24 Vdc nom (10 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp.Current Consumption60 mA with 20 mA output and transistors energized.Power Dissipation1.3 W with 24 V supply, 20 mA output and transistors energized.Max. power consumptionat 30 V supply voltage, overload condition, transistors output energized and PPC1090 connected, 1.9 W.InputTypemagnetic pick-up, contact, proximity to EN60947-5-6, open-collector transistor for frequency signal up to 50 KHz, TTL CMOS.Magnetic pick-up sensitivity≥ 20 mVpp up to 100 Hz input, ≥ 50 mVpp up to 1 KHz, ≥ 100 mVpp up to 5 KHz, ≥ 500 mVpp up to 20 KHz, ≥ 1 Vpp up to 50 KHz.Switching current levelsON ≥ 2.1 mA, OFF ≤ 1.2 mA, switch current ≈ 1.65 mA ± 0.2 mA hysteresis (for proximity or transistor input).Equivalent source8 V 1 KΩ typical (8 V no load, 8 mA short circuit).Integration time100 msResolution/Visualization1 mHz for 50 Hz range, 10 mHz for 500 Hz range, 100 mHz for 5 KHz range, 1 Hz for 50 KHz range.Input range0 to 50.5 KHz maximum.BurnoutTypedownscale analog output signal for loss of input signal.OutputType0/4 to 20 mA, on max. 600 Ω load source mode, current limited at 22 mA or 0/1 to 5 V or 0/2 to 10 V signal, limited at 11 V.Resolution1 µA current output or 1 mV voltage output.Transfer characteristiclinear direct or reverse.Response time≤ 50 ms (10 to 90 % step change).Output ripple≤ 20 mVrms on 250 Ω load.Repeater OutputTypevoltage free SPST optocoupled open-collector transistor.Output factordirect 1:1 or divided by 10, 100, 1000, 10000, 100000 or 1000000.Open-collector rating100 mA at 35 Vdc (≤ 1.5 V voltage drop).Leakage current≤ 50 µA at 35 VdcFrequency response50 KHz maximumAlarmTrip point rangewithin rated limits of input range (see input for step resolution).Delay time0 to 1000 s, 100 ms step.Hysteresis0 to 5 Hz for 50 Hz range, 0 to 50 Hz for 500 Hz range, 0 to 500 Hz for 5 KHz range, 0 to 5 KHz for 50 KHz range (see input visualization parameters for step resolution).Outputvoltage free SPST optocoupled open-collector transistor.Open-collector rating100 mA at 35 Vdc (≤ 1.5 V voltage drop).Leakage current≤ 50 µA at 35 Vdc.Input performanceTypeRef. Conditions 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration and linearity accuracy≤ ± 0.05 % of full scale of selected input range.Temperature influence≤ ± 0.005 % of full scale input range for a 1 °C change.Output performanceTypeRef. Conditions 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration accuracy≤ ± 0.1 % of full scaleLinearity error≤ ± 0.05 % of full scale.Supply voltage influence≤ ± 0.05 % of full scale for a min to max supply change.Load influence≤ ± 0.05 % of full scale for a 0 to 100 % load resistance change.Temperature influence≤ ± 0.01 % on zero and span for a 1 °C change.IsolationTest VoltageI.S. In/Out 1.5 KV; I.S. In/Supply 1.5 KV; Analog Out/Supply 500 V; Analog Out/Digitals Out 500 V; Digital Outs/Supply 500 V; Digital Out/Digitals Out 500 V;Environmental conditionsOperatingtemperature limits –20 to + 60 °C, relative humidity max 90 % non condensing, up to 35 °C.Storagetemperature limits – 45 to + 80 °C.Safety descriptionSafety parametersUo/Voc = 10.9 V, Io/Isc = 1.1 mA, Po/Po = 3 mW at terminals 13-16. Uo/Voc = 15.5 V, Io/Isc = 13 mA, Po/Po = 48 mW at terminals 14-15. Uo/Voc = 10.9 V, Io/Isc = 23 mA, Po/Po = 60 mW at terminals 15-16. Ui/Vmax = 30 V, Ci = 0 nF, Li = 0 nH at terminals 13-16. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60°C.MountingTypeEN/IEC60715 TH 35 DIN-Rail.Weightabout 155 g.Connectionby polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm2.LocationSafe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation.Protection classIP 20.DimensionsWidth 22.5 mm, Depth 99 mm, Height 114.5 mm.Certifications: ATEX, IECEx, UL, FM, INMETRO, Maritime, Metrological certificates available for D1000 Series.Declarations of Conformity: EU Declaration of Conformity D1000 series, G3 compliance, etc.
