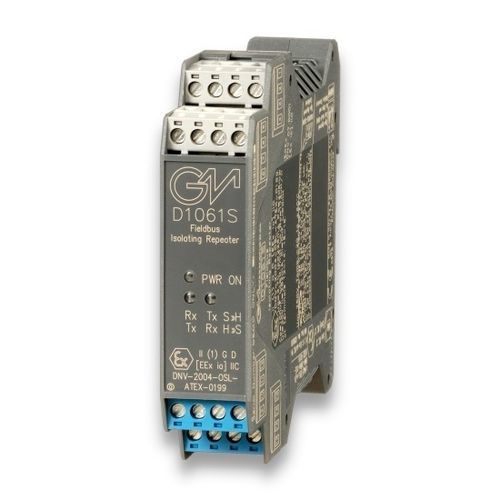

DIN rail repeater D1061S

RS-422isolatedcommunication

The single channel DIN Rail RS422 / RS485 Isolating Repeater type D1061S is used to separate Intrinsically Safe RS422 / RS485 equipment located in Hazardous Area from a RS232 / RS422 / RS485 controller located in Safe Area. Transmission speed is DIP-switch adjustable from 1.2 Kbit/s up to 1.5 Mbit/s. D1061S module supports all RS485 protocols, such as Fieldbus, Modbus, Profibus, etc. Terminating impedance is DIP-switch selectable inside the unit (250 Ω value) for both sides of communication lines (Hazardous Area and Safe Area side). RS422 / RS485 connection in Safe Area is provided both on terminal block and SUB D 9 poles female connector on the unit. RS232 connection is provided on SUB D 9 poles female connector only. The module also provides a shield terminal block for connecting cable shielding on Hazardous Area side.Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.RS422 / RS485 Hazardous Area I.S. Signal.RS232 / RS422 / RS485 Safe Area Signal.Transmission speed up to 1.5 Mbit/s.For Modbus, Fieldbus, Profibus and all other RS485 protocols.Three port isolation, Input/Output/Supply.EMC Compatibility to EN61000-6-2, EN61000-6-4.In-field programmability by DIP Switch.250 Vrms (Um) max. voltage allowed to the Instruments associated with the barrier.Technical Specifications:Supply: 24 Vdc nom (20 to 30 Vdc), reverse polarity protected, ripple ≤ 5 Vpp. Current consumption: 100 mA at 1.5 Mbit/s. Power dissipation: 2.0 W at 24 V, 2.8 W max at 30 V.Input/Output I.S. Hazardous Area: RS422 / RS485 Intrinsically Safe connection (EIA RS422-A and EIA RS485). Terminating impedance: 250 Ω DIP-switch selectable. Transmission speed: 1.2 to 1.5 Mbit/s DIP-switch configurable. Transmission cable length: ≤ 1200 m up to 93.75 Kbit/s, ≤ 1000 m up to 187.5 Kbit/s, ≤ 400 m up to 500 Kbit/s, ≤ 200 m up to 1.5 Mbit/s. Connection: plug-in disconnect screw terminal block up to 2.5 mm², shield terminal block provided.Output/Input Safe Area: RS232 / RS422 / RS485 connection (EIA RS232-C, EIA RS422-A, EIA RS485). RS422/RS485 Terminating impedance: 250 Ω DIP-switch selectable. RS422/RS485 Transmission speed: 1.2 to 1.5 Mbit/s DIP-switch configurable. RS422/RS485 Transmission cable length: same as above. RS422/RS485 Connection: screw terminal block or SUB D 9 poles female connector. RS232 Transmission speed: up to 115.2 Kbit/s. RS232 Transmission cable length: ≤ 15 m. RS232 Connection: SUB D 9 poles female connector.Isolation: Test Voltage: I.S. RS422-RS485 / RS232-RS422-RS485 1.5 KV; I.S. RS422-RS485 / Supply 1.5 KV; RS232-RS422-RS485 / Supply 500 V.Environmental conditions: Operating temperature: -20 to +60 °C, relative humidity max 90% non condensing up to 35 °C. Storage temperature: –45 to +80 °C.Safety description: Uo/Voc = 3.7 V, Io/Isc = 225 mA, Po/Po = 206 mW at terminals 13-14, 15-16. Ui/Vmax = 30 V, Ii/Imax = 282 mA, Ci = 0 nF, Li = 0 nH at terminals 13-14, 15-16. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C.Mounting: EN/IEC60715 TH 35 DIN-Rail. Weight: about 170 g. Connection: polarized plug-in disconnect screw terminal blocks up to 2.5 mm² and SUB D 9 poles (DB9) DIN 41652 female connector (only for RS232, RS422, RS485 Safe Area connection).Location: Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation.Protection class: IP 20.Dimensions: Width 22.5 mm, Depth 99 mm, Height 114.5 mm.Channels: 1Status: ACTIVE
