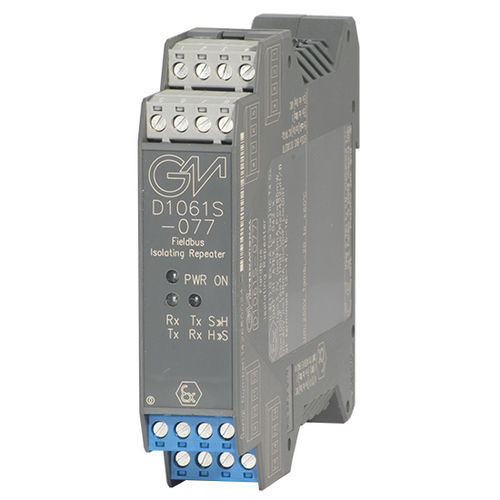

Communication repeater D1061S-077

RS-485transmissioncurrent

The DIN-Rail RS422 / RS485 Fieldbus Isolating Repeater type D1061S-077 is used to separate Intrinsically Safe RS422 / RS485 equipment located in Hazardous Area from a RS232 / RS422 / RS485 controller located in Safe Area. Transmission speed is DIP-switch adjustable from 1.2 Kbit/s up to 1.5 Mbit/s. Terminating impedance is DIP-switch selectable inside the unit (200 Ω value) for both sides of communication lines (Hazardous Area and Safe Area side). RS422 / RS485 connection in Safe Area is provided both on terminal block and SUB D 9 poles female connector on the unit. RS232 connection is provided on SUB D 9 poles female connector only. The module also provides a shield terminal block for connecting cable shielding on Hazardous Area side.Input/Output from Zone 0 (Zone 20), installation in Zone 2.RS422 / RS485 Hazardous Area I.S. Signal.RS232 / RS422 / RS485 Safe Area Signal.Transmission speed up to 1.5 Mbit/s.Three port isolation, Input/Output/Supply.EMC Compatibility to EN61000-6-2, EN61000-6-4.In-field programmability by DIP Switch.250 Vrms (Um) max. voltage allowed to the Instruments associated with the barrier.Technical Specifications:Supply: 24 Vdc nom (20 to 30 Vdc), reverse polarity protected, ripple within voltage limits ≤ 5 Vpp. Current Consumption: 100 mA with 1.5 Mbit/s transmission speed, typical. Power Dissipation: 2.0 W with 24 V supply and 1.5 Mbit/s transmission speed typical. Max. power consumption: at 30 V supply and 1.5 Mbit/s transmission speed, 2.8 W.Input/Output I.S. Hazardous Area: RS422 / RS485 Intrinsically Safe connection (EIA RS422-A and EIA RS485 applicable standard). Terminating impedance: 200 Ω DIP-switch selectable. Transmission speed: 1.2, 2.4, 4.8, 9.6, 14.4, 19.2, 38.4, 57.6, 93.75, 115.2, 187.5, 375, 500, 750 Kbit/s or 1.0, 1.5 Mbit/s DIP-switch configurable. Transmission cable length: ≤ 1200 m up to 93.75 Kbit/s, ≤ 1000 m up to 187.5 Kbit/s, ≤ 400 m up to 500 Kbit/s, ≤ 200 m up to 1.5 Mbit/s. Connection: by plug-in disconnect screw terminal block to accommodate terminations up to 2.5 mm², shield terminal block provided for cable connection.Output/Input Safe Area: RS232 / RS422 / RS485 connection (EIA RS232-C, EIA RS422-A and EIA RS485 applicable standard). RS422 / RS485 Terminating impedance: 200 Ω DIP-switch selectable. RS422 / RS485 Transmission speed: 1.2, 2.4, 4.8, 9.6, 14.4, 19.2, 38.4, 57.6, 93.75, 115.2, 187.5, 375, 500, 750 Kbit/s or 1.0, 1.5 Mbit/s DIP-switch configurable. RS422 / RS485 Transmission cable length: ≤ 1200 m up to 93.75 Kbit/s, ≤ 1000 m up to 187.5 Kbit/s, ≤ 400 m up to 500 Kbit/s, ≤ 200 m up to 1.5 Mbit/s. RS422 / RS485 Connection: by plug-in disconnect screw terminal block to accommodate terminations up to 2.5 mm² or SUB D 9 poles female connector (requires SUB D 9 poles male mating connector), DIP-switch configurable. RS232 Transmission speed: 1.2, 2.4, 4.8, 9.6, 14.4, 19.2, 38.4, 57.6, 93.75, 115.2 Kbit/s DIP-switch configurable. RS232 Transmission cable length: ≤ 15 m up to 115.2 Kbit/s. RS232 Connection: SUB D 9 poles female connector (requires SUB D 9 poles male mating connector).Isolation: Test Voltage: I.S. RS422-RS485 / RS232-RS422-RS485 1.5 KV; I.S. RS422-RS485 / Supply 1.5 KV; RS232-RS422-RS485 / Supply 500 V.Environmental conditions: Operating temperature limits -20 to +60 °C, relative humidity max 90 % non condensing, up to 35 °C. Storage temperature limits –45 to +80 °C.Safety description: Safety parameters: Uo/Voc = 3.7 V, Io/Isc = 93 mA, Po/Po = 85 mW at terminals 13-14 and 15-16. Ui/Vmax = 30 V, Ii/Imax = 136 mA, Ci = 0 nF, Li = 0 nH at terminals 13-14 and 15-16. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C.Mounting: EN/IEC60715 TH 35 DIN-Rail. Weight: about 170 g. Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² and SUB D 9 poles (DB9) DIN 41652 female connector (only for RS232, RS422, RS485 Safe Area connection). Location: Safe Area or Zone 2, Group IIC T4 installation. Protection class: IP 20. Dimensions: Width 22.5 mm, Depth 99 mm, Height 114.5 mm.
