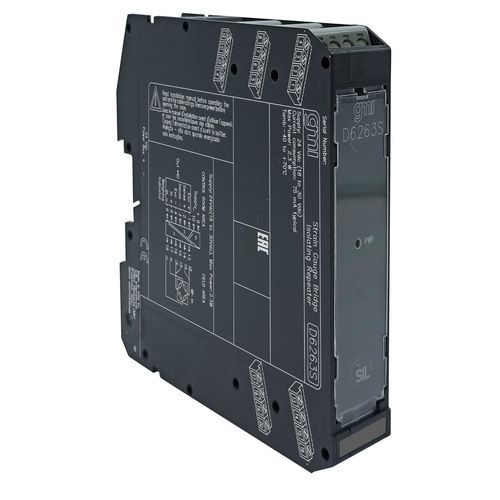

Digital load cell transmitter D6263S

The Load Cell/Strain Gauge Bridge Repeater D6263 module is a unit suitable for applications requiring SIL 2 level in safety related systems for high risk industries. The unit acts as a transparent galvanic isolated interface installed between a weighing indicator and a load cell (or group of load cells); it appears at the terminals of the indicator as a single load cell equivalent to the one in the field. It provides a fully floating power supply voltage with remote sensing capability to load cell and repeats, while isolating, the mV signal output to drive a load depending on the host system reference voltage. Up to four 350 Ω load cells, or five 450 Ω load cells, or ten 1000 Ω load cells can be connected in parallel. The Voltage reference is set as an external supply.SIL 2 / SC 3Strain Gauge Bridge Transparent RepeaterUp to four 350 Ω load cells in parallelHigh AccuracyThree port isolation, Input/Output/SupplyTechnical Specifications:Supply: 24 Vdc nom (18 to 30 Vdc), reverse polarity protected. Current Consumption: 75 mA @ 24 Vdc with four 350 Ω load cells connected, typical. Power Dissipation: 1.8 W @ 24 Vdc with four 350 Ω load cells connected, typical.Input: Up to four 350 Ω load cells in parallel or up to five 450 Ω load cells in parallel or up to ten 1000 Ω load cells in parallel. Integration time: 12.5 ms. Bridge supply voltage: 4.0 Vdc nominal. Bridge output signal: 1 to 4 mV/V.Output: Same as the input signal. Output impedance: 500 Ω, typical. Excitation voltage: externally applied between 4 V and 15 V. Transfer characteristic: linear. Response time: ≤ 20 ms (10 to 90 % step change).Performance: Ref. Conditions: 24 V supply, 23 ± 1 °C ambient temperature. Calibration accuracy: ≤ ± 0.003 % input FSR, after system calibration. Linearity accuracy: ≤ ± 0.002 % input FSR. Short fault: ≤ ± 0.002 % input FSR for a 1 °C change.Isolation: Test Voltage: In/Out 2.5 kV; In/Supply 2.5 kV; Out/Supply 500 V.Environmental conditions: Operating temperature: –40 to +70 °C. Storage temperature: –45 to +80 °C.Mounting: DIN-Rail 35 mm, with or without Power Bus. Weight: about 165 g. Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). Dimensions: Width 22.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 1
