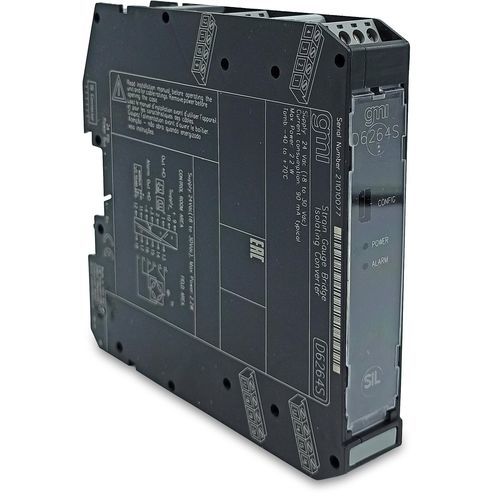

Digital load cell transmitter D6264S

The Load Cell/Strain Gauge Bridge Converter D6264 module is a unit suitable for applications requiring SIL 2 level in safety related systems for high risk industries. The unit acts as a galvanically isolated interface installed between a PLC/DCS and a load cell (or a group of load cells). Up to four 350 Ω load cells, or five 450 Ω load cells, or ten 1000 Ω load cells can be connected in parallel. It provides a fully floating power supply voltage with remote sensing capabilities to load cells and converts the mV signal from the load cell into a 0/4-20 mA, providing both current source and sink capabilities. The module is also provided with PhotoMOS alarm output. A modbus output is also provided to interface the PLC/DCS using digital communication.SIL 2 / SC 3Strain Gauge Bridge Isolated ConverterUp to four 350 Ω load cells in parallel0/4-20 mA sink/source output currentModbus RTU RS-485 for monitor & configurationField Automatic CalibrationFully programmable operating parametersHigh Accuracy, μP controlled A/D converterThree port isolation, Input/Output/SupplyTechnical Specifications:Supply: 24 Vdc nom (18 to 30 Vdc), reverse polarity protected. Current Consumption: 90 mA @ 24 Vdc with four 350 Ω load cells connected and 20 mA output, typical. Power Dissipation: 2.1 W @ 24 Vdc with four 350 Ω load cells connected and 20 mA output, typical.Input: Up to four 350 Ω load cells (parallel connection). Up to five 450 Ω load cells (parallel connection). Up to ten 1000 Ω load cells (parallel connection). Integration time: 100 ms (slow) or 12.5 ms (fast). Bridge supply voltage: 4.0 Vdc nominal. Bridge output signal: 1 to 4 mV/V.Output: 0/4 to 20 mA, on max. 400 Ω load, current limited @ 24 mA. Response time: ≤ 20 ms (10 to 90 % step).Alarm: Trip point range within rated limits of the input sensor. ON-OFF delay time: 0 to 1000 s, 100 ms step. Hysteresis: within rated limits of input sensor. Output: voltage free SPST photoMOS: 100 mA, 60 Vdc (≤ 1 V drop).Modbus interface: Modbus RTU RS-485 up to 115.2 kbps for monitor/configuration/control.Input performance: Ref. Conditions: 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature. Calibration accuracy: ≤ ± 0.05 % FSR. Linearity accuracy: ≤ ± 0.02 % FSR. Temp. influence: ≤ ± 0.002 % FSR for a 1 °C change.Output performance: Ref. Conditions: 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature. Calibration accuracy: ≤ ± 0.05 % FS. Linearity accuracy: ≤ ± 0.05 % FS. Temp. influence: ≤ ± 0.01 % FS on zero/span for a 1 °C change.Isolation: Test Voltage: In/Out 2.5 kV; In/Modbus Out 2.5 kV; In/Supply 2.5 kV; Out/Supply 500 V; Modbus Out/Supply 500 V; Out/Modbus Out 500 V; Out/Alarm Out 500 V; Alarm Out/Modbus Out 500 V; Supply/Alarm Out 500 V.Environmental conditions: Operating temperature: –40 to +70 °C. Storage temperature: –45 to +80 °C.Mounting: DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board. Weight: about 160 g. Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). Dimensions: Width 22.5 mm, Depth 123 mm, Height 120 mm.Channels: 1Status: ACTIVE
