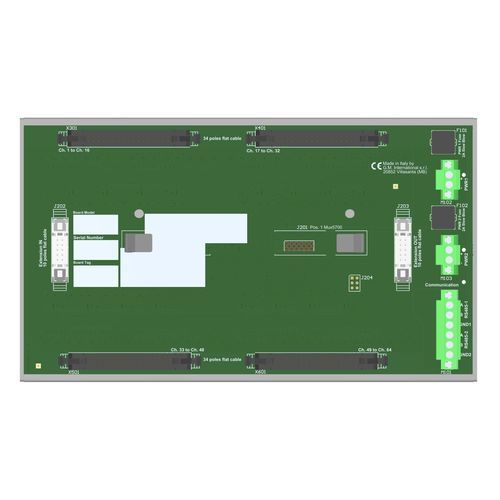

Plug-in terminal block TBE-D5001-HRT-003

powerplastic

This Termination Board with Enclosure (TBE) allows the remote monitoring of any HART®-compatible 4/20 mA field loop. This is achieved by one locally mounted HART® Multiplexer Modem 5700 series and by interface connectors to access field smart devices. The single TBE-D5001-HRT-003 Termination Board supports 64 channels, extendable with additional units (up to 4) to manage all 256 channels available on the HART® Multiplexer Modem 5700 series. The Mux unit connects, via the RS-485 interface, to an external PC running an FDT-based software package (PACTware™, etc.) through a dedicated Device Type Manager (DTM). The PC can communicate with multiple Mux units, located on different boards, in a multi-drop RS-485 mode. The HART® Termination Board TBE-D5001-HRT-003 is SIL 3 certified as non-interfering with the signal loops. The 24 Vdc Power Supply of the TBE is connected to two plug-in terminal blocks, for a redundant power supply.SIL 3 / SC 3Installation in Zone 2/Div. 2HART® Multiplexing Board of up to 64 analog signals (extendable to 256)4/20 mA loops isolated with dual capacitors (short circuit proof)Dedicated terminal to connect RS-485 cable shieldDouble terminal to ease RS-485 cable multi-dropLower cables installation and maintenance costsRedundant power supplyMounting hardware provided for single DIN Rail mounting kitTechnical Specifications:Number of positions: 1 x HART® Multiplexer Modem 5700 seriesMaximum number of channels: 64 on a single board, extendable to 256 with 4 boards and 1 HART® Multiplexer Modem 5700 series. Up to 16128 smart devices in full topology with 252 boards and 63 HART® Multiplexer Modem 5700 series.Voltage: 24 Vdc nom (20 to 30 Vdc), reverse polarity protected, double terminal blocks for redundant power supply, with OR diodes to mix supply voltages.Current Consumption: 35 mA @ 24 Vdc with full topology (4 boards), typical.Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm².Protection fuse: 2 A time lag.HART Interface Connection: 4 x 34-poles receptacle connector (require female mating connector).HART Interface Cable: flat cable CABF032.Channel-to-channel isolation voltage: 50 V.Additional TBs interface Connection: 2 x flat cable 10 poles male connectors (requires female mating connector).Additional TBs interface Cable: flat cables CABF022, CABF023, CABF024.Operating temperature: –40 to +70 °C.Max altitude: 2000 m a.s.l.Storage temperature: –45 to +80 °C.Mounting type: Hardware included for mounting on single DIN-rail 35 mm.Weight: about 710 g (+ 50 g plastic clips or 380 g metal clips).Location: installation in Safe Area or Zone 2, Group IIC T4, or Class 1, Div. 2, Group A, B, C, D, T4.Dimensions: Width 235 mm, Depth 135 mm, Height 154 mm.
