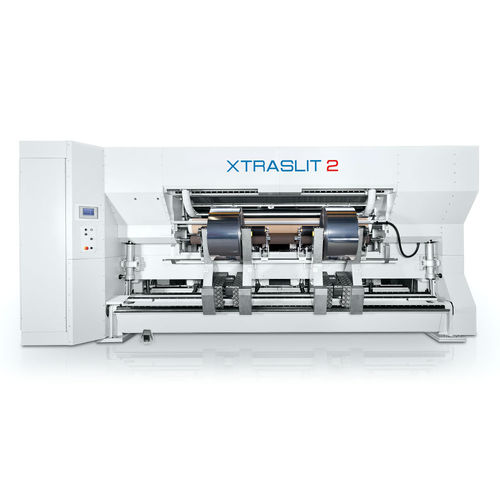

Compact slitter-rewinder XTRASLIT 2
multi-purposefor paperfor plastic films

compact slitter-rewinder
compact slitter-rewinder
compact slitter-rewinder
compact slitter-rewinder
Add to favorites
Compare this product


Characteristics

Transformed product
multi-purpose, for paper, for plastic films, for adhesive tape
Options
compact, modular
Field
for packaging
Working width

Min.: 1 mm (0 in)

Max.: 3,600 mm (142 in)

Speed

Min.: 0 mm/min (0 in/s)

Max.: 1,200,000 mm/min (787 in/s)

Description

The XTRASLIT 2 for outstanding efficiency and quality The compact slitter rewinder XTRASLIT 2 offers cutting-edge technology for the converting of metallized films, packaging films as well as sensitive papers. It guarantees outstanding efficiency and winding quality due to the unique GOEBEL IMS slitting and winding solution. Discover the advantages of this slitter rewinder: Designed to convert packaging films, metallized films, capacitor films, optical films, composite materials as well as technical papers and specialty papers Compact design for minimum space requirements Modular configuration with broad range of individual technical features User-friendly, low-maintenance machine concept for minimized downtime Fulfills latest safety requirements The XTRASLIT 2 allows a minimum slitting width of 180 mm, is designed for a working width of up to 3,600 mm and can convert material thicknesses between 2 and 400 µm. In the process, the system permits a speed of up to 1,200 m/min, depending on the material. Setting trends with energy efficiency and Profinet control The modern and refined design as well as the user-friendly, low-maintenance machine concept, in which all cabinets and control panels are already integrated in the machine frame, allow maximum performance and safety in a minimum of space. The digital AC drive technology from Siemens has the lowest noise level and ensures an efficient use of energy. Through the Profinet control concept, faster data transmission rates and a higher machine performance are achieved while downtime can be minimized due to improved diagnostics and extended analytical functions.

VIDEO

Catalogs

XTRASLIT 2
XTRASLIT 2
4 Pages
