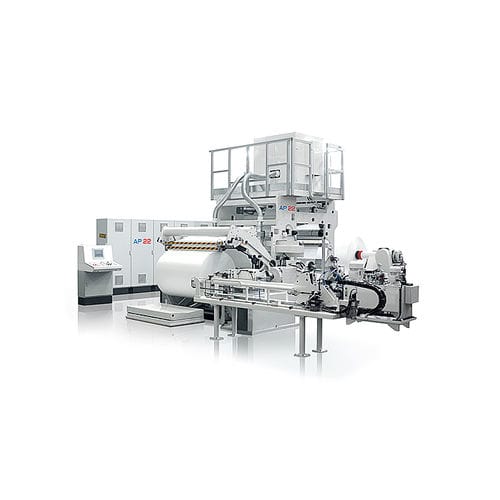

Single shaft slitter-rewinder AP 22

automaticmulti-purposefor the packaging industry

Maximum productivity and best price-performance ratio guaranteed The AP 22 is the ideal slitter rewinder for the aseptic packaging industry offering maximum productivity and best price-performance ratio. More than 120 machines have already been built which turns the AP 22 into a long-lasting success story. Discover the advantages of AP 22 Mother roll weight up to 3,500 kg Allows minimum slitting width of 120 mm Stop time between two sets of subsequent finished reels can be as short as 2 minutes Single-shaft center-driven rewinding concept with idle lay-on roller mounted on a hinged structure that lifts upwards following the growing diameter of the rewinding rolls Automatic unloading system for finished rolls and fully automatic conveyor system on customer request AP 22 is also available on request as oil-free totally electrical version (no hydraulic functions) Complete automatic version on customer’s request AP 22 offers top winding quality at a working width of up to 1,650 mm, a rewind diameter of up to 1,800 mm and an unwind diameter of up to 2,000 mm. The unique slitting concept guarantees outstanding roll separation. The AP 22 enables conversion speeds of up to 1,000 m/min. All machines of this series work with a single-shaft center-driven winding concept equipped with an idle lay-on roller. They can be used as bi-directional inspection rewinders for repairing telescoped or damaged rolls as well as for detecting defections.
