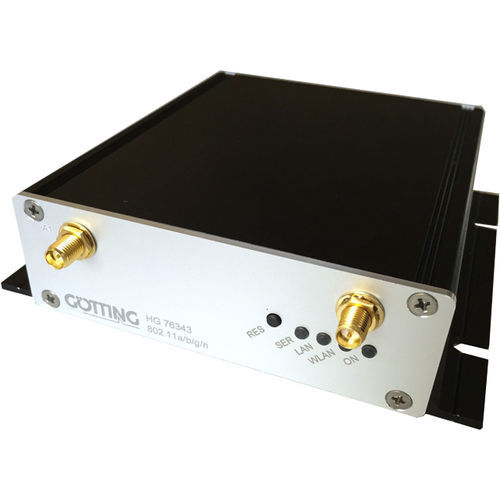

Data modem HG G-763 series

RS232RS485WiFi

WLAN Radio Modem for 802.11 a/b/g/n networks (version for 802.11 ac) / Serial / Ethernet / USB / Version with LTE/5G The client adapter HG G-76343/4/5/6 is used for operation in Wireless Local Area Networks (WLAN) according to the standard 802.11a/b/g/n. The usage of a 32-Bit ARM processor enhances the throughput performance. In addition to standard encryption according to WEP64/128 and TKIP/AES further security measures according to the 802.1x standard are available (WPA(2), EAP and more). The radio modem is available in different variants. The differences are the casing and the number of available interfaces. All variants can use the firmware file and can be configured with the MC-Config program attached at the bottom of this page. You can find a detailed variant overview in the data sheet attached below. The variants are: No modification of hard- or software required Transmission rate on the serial interface up to 460,8 kBaud Perfectly suited for mobile vehicles like fork lift trucks and AGVs Input voltages from 10 to 72 VDC galvanically separated for battery operation or Power over Ethernet (PoE) Current consumption <= 5 W, ideal for standby operation of battery-powered vehicles Temperature range 0 to 60o C Relay contact triggered via WLAN for re-activation of vehicles in standby mode Robust aluminium casing with different options for fixing (strap, top hat rail) Voltage supply and relay contact via screwable M12 plugs 2 antenna connectors (Diversity)
