Friction clutch and brake 6.2
hydraulic

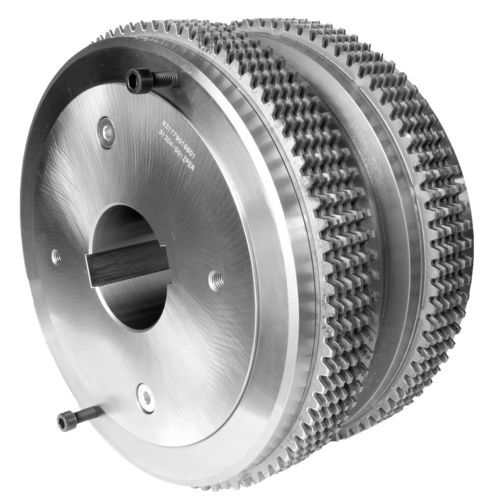

Friction clutch and brake - 6.2 - GOIZPER - hydraulic
Friction clutch and brake - 6.2 - GOIZPER - hydraulic
Add to favorites
Compare this product
Go to the GOIZPER website for more information

Characteristics

Type
friction
Operation
hydraulic
Torque

Max.: 633,000 Nm
(466,876.840493 ft.lb)

Min.: 2,500 Nm
(1,843.905373 ft.lb)

Rotational speed

Max.: 1,700 rpm
(10,681.415 rad.min-1)

Min.: 350 rpm
(2,199.1149 rad.min-1)

Description

Combined hydraulic clutch brakes are used in particular in machines that require high speeds and precise and fast starting and stopping manoeuvres. The application of the clutch-brake provides advantages in terms of quiet operation, low inertia, energy savings and minimum maintenance. GOIZPER clutch-brake units are designed to operate with oil at a nominal pressure of 60 bar in the drive circuit and with a forced internal cooling circuit (if no other specifications are laid down). The main purpose of the cooling oil circulating through the plates on both sides (clutch and brake) is to absorb and dissipate the heat produced between the plates.
