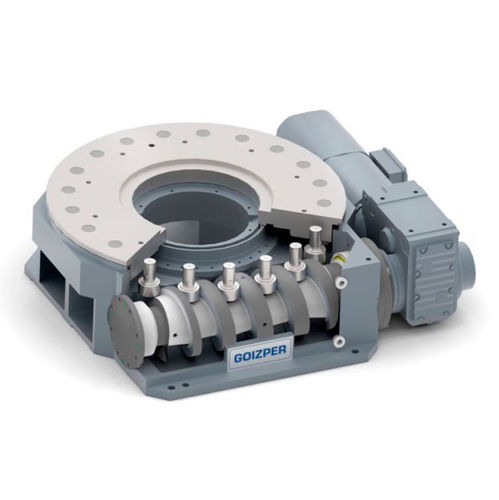

Servo-driven rotary table ZPGI

motor-drivenhorizontalvertical

Our ZPGI range of servo rotary indexing tables with heavy load positioning are ideal for dynamic, precise positioning of parts and large heavy equipment. Features - Flexible rotary table: - Heat-treated cylindrical cams - Cam follower position with wide radius to provide high rigidity - High-capacity crossed roller bearings - Fixed central column with large centre through hole - Acceleration curve obtained by servo motor control - High-precision stopping (positioning by servo motor) - Backlash-free - Available for horizontal or vertical positioning TECHNICAL SPECIFICATIONS: Sizes 600 - 800 - 900 - 1200 - 1400 - 1660 - 2400 - 3400 Number of stops Servo-driven aplications Index Angle Freely programmable Max Axial Force From 2500 to 180000 N Max Radial Force From 7900 to 49000 N Max Tilting Moment From 5500 to 218000 Nm Central Hole From ø120H7 to ø775H7 mm Accuracy ± 15 arc sec º GOIZPER INDEXERS offers solutions to suit your applications. Servo rotary tables (or rotary indexing tables), flexible tables for welding cells, hemming, assembly and control. Our rotary tables for automation systems can be used as rotating or positioning shafts or for a wide range of assembly applications. With a very high output rate and the shortest possible cycle times in addition to the highest standards of accuracy, they can increase the efficiency of your production processes for any application. Our ZPGI range of servo rotary indexing table with heavy load positioning are ideal for dynamic, precise positioning of parts and large heavy equipment. Several versions of our cam operated servo driven rotary indexing table are available.
