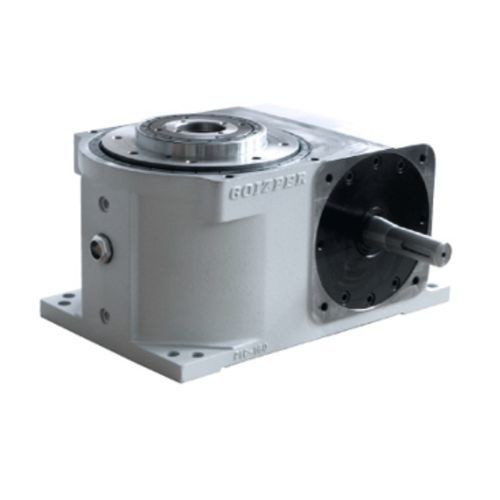

Globoidal cam intermittent index unit PIC/PIM

compact

The compact design index tables have a globoidal mechanism that makes them highly adaptable to suit any requirement. Compact intermittent table features: * Globoidal cam with heat-treated profile guaranteeing high surface hardness and internal toughness, resisting the dynamic forces generated by motion * Large output table with hollow shaft * Zero backlash in idle mode * Internal locking by cam inside indexing unit * Acceleration control and vibration reduction * High stopping precision * Fixed central column with large centre through hole * Number of stops: 2-3-4-5-6-8-10-12-16-20-24. Others available on request TECHNICAL SPECIFICATIONS * Sizes: 100 - 125 - 160 - 175 - 200 - 250 - 315 * Number of stops: From 2 to 32+ * Index Angle: From 180º to 330º * Max Axial Force: From 15400 to 170600 N * Max Radial Force: From 2000 to 18000 N * Max Tilting Moment: From 282 to 6800 Nm * Repeatability: From ± 0,009 - Ø150mm to ± 0,009 - Ø500mm * Accuracy: From ± 0,017 - Ø150mm to ± 0,017 - Ø500mm Their globoidal mechanism makes them highly adaptable to suit any requirement. As a result, they are often used in varied sectors such as glass making machines, automation machines, packaging or textiles. Our units are entirely mechanically constructed and all the moving parts are oil-immersed, making them practically maintenance-free.
