Fiber laser cutting machine C20

for aluminumfor stainless steelfor steel

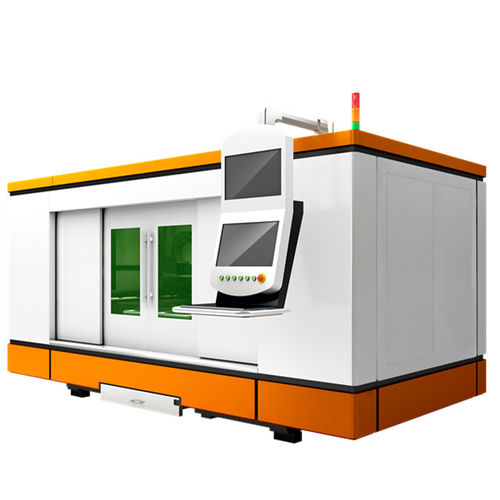

Golden Laser C-Series: Compact Fully Enclosed Fiber Laser
The Golden Laser C-Series is a specialized line of compact, fully enclosed fiber laser cutters designed for precision metal fabrication in space-constrained environments. Available in three distinct formats—C15, C20, and C30—these machines are engineered to accommodate standard-sized metal plates while maintaining a minimal workshop footprint.


By combining a fully shielded safety enclosure with a high-efficiency pull-out workbench, the C-Series offers industrial-grade cutting power with the flexibility of a mobile, small-cell unit.


Key Highlights: C-Series Compact Laser
• Space-Efficient Design: Condensed footprint allows for easy deployment in small workshops or as an integrated component in larger production lines.
• Total Safety & Noise Control: The fully sealed cabinet provides Class 1 laser safety and superior acoustic insulation for a quieter, safer workspace.
• Ergonomic Pull-out Table: A sliding workbench ensures fast, convenient loading and unloading while maintaining a fully enclosed setup.
• Plug-and-Play Logistics: Designed for no-disassembly shipping in standard containers, significantly lowering freight costs and installation time.
• Intuitive Quick Start CNC: Streamlined software integration allows operators to move from CAD drawing to finished part with minimal setup.


Technical Parameters
• Working Area: 2000mm*1000mm
• Laser power: 1500W 2000W 3000W
• X Y axis max idle speed: 60m/min
• X Y axis max acceleration speed: 1.0g
• Position accuracy: 0.05mm
• Dust extraction system: Professional laser dust extraction filter
• Laser Source: Raycus fiber laser
• •Laser head: Bocl laser head
• Cutting ability: Carbon steel ≤ 25mm; Stainless steel ≤ 12mm; Aluminum ≤ 8mm
