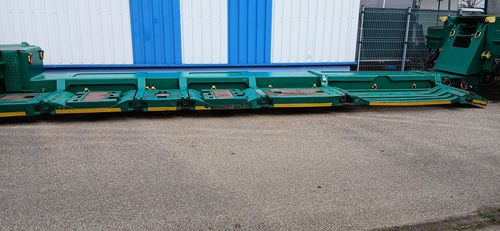

Gooseneck semi-trailer STZ-VLS

construction4-axlehydraulic

Semi-trailers FR 09/2000 Used vehicle Price on request More technical data Construction Year - 2000 Vehicle Description GOLDHOFER 3-axle low bed STZ-VLS 4-40/80 A Saddle load: 17,500 kg 4 x 10t axle load: 40,000 kg Total weight: 57,500 kg Dead weight: approx. 19,000 kg (without accessories) Payload: approx. 38,500 kg • Hydraulically liftable and lowerable gooseneck, including support cylinder - Hydraulic locking for excavator bridge - Steering radius to rear: 2,200 mm - Kingpin: 2” - Gooseneck length 3,750 mm / width 2,440 mm • Special low bed in the form of an excavator bridge, welded directly to the air-sprung 4-axle chassis - Designed for a TECHNICAL PAYLOAD of up to approx. 39 t - Length: 7,500 mm telescopic by 4,000 mm to 11,500 mm - Base width: 600 mm of the center tube - Height of the low-bed bridge: 330 mm - Loading height loaded 480 mm / ground clearance loaded 150 mm - 3 special sliding tables, width 2,300 mm, - on all 3 tables for a max. outer width of 3,000 mm - Sliding tables/extension elements designed for a wheel track width of 2,200 mm or wheel load of max. 10 t - Axle manufacturer: BPW Eco - 1st axle narrow axle, chassis welded firmly to the excavator bridge - Air-sprung chassis with a narrow-gauge axle steered via a turntable - 3 hydromechanically forced steering knuckle axles - Chassis dimensions: Length 5,730 mm Width 2,550 mm Height loaded 925 mm - Wheelbase 1,310 mm - Excavator bucket dimensions: 3,210 mm Width 694 mm Depth 240 mm • Miscellaneous: - Twin tires 235/75R17.5 for chassis - Beka-Max central lubrication system - RAL 6016 turquoise green
