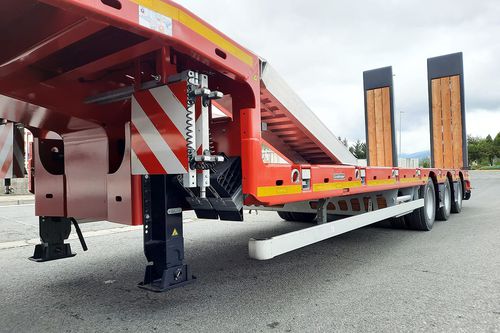

Flatbed semi-trailer STN-L 3 (245)

containergooseneckconstruction

Semi-trailers FR 02/2024 New vehicle Features Air suspension ABS EBS Rental possible Vehicle Description GOLDHOFER 3-axle flatbed semi-trailer Type STN-L 3 (245) A “Stepstar” Maximum permissible laden weight: 18,500 kg 3 x 10 t Axle load: 30,000 kg (technical max. 12t axle load) Gross vehicle weight: 48,500 kg Dead weight: approx. 11,000 kg (without accessories) Dimension b: 11,370 mm • >MEGA> gooseneck - low overall height, rigid in center tube design - Length: 3,700 mm - Fifth wheel height: 950 mm - forward deflection radius: 1,845 mm - rear deflection radius: 2,100 mm - kingpin: 2” - anti-slip covering - spare wheel holder on the front side of the gooseneck - 3 pairs of lashing rings on the loading area of the gooseneck - 2 pairs of stanchion pockets - 1 pair of additional wheel chocks incl. holder • loading area - length: 9,300 mm (total length: 16,140 mm) - width: 2,550 mm - extendable: 6840 mm - loading height : 855 mm (-60 mm / +140 mm) - sloping rear 8°, 550 mm long - Sheet metal floor covering with anti-slip covering - Open steel storage box for extension planks mounted under the loading area, width 800 mm (max. payload 200 kg with even load distribution) - Rear support mechanically spring-loaded - 7 pairs of stanchion pockets in the outer frame of the loading area - 9 lashing points on loading area/rear area/outer frame (LC 10,000) - open steel storage box for extension planks under the loading area - extendable extension 3 m - 4 pairs of loose container locks for Wader • 3-axle chassis: - Wheelbase: 2 x 1,410 mm - Axle make: BPW Eco Max, air-suspended - 2 x rigid axle | 1 x friction-steered axle
