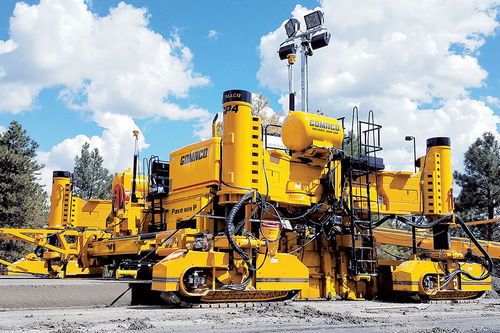

Slipform paver GP4

• The GOMACO GP4 is designed for paving up to 40 feet (12.19 m) wide and to accommodate multiple width changes. • The GP4 is available as a two-track or four-track slipform paver. • GOMACO’s GP4 features a roller frame with dual-telescoping capabilities of up to seven feet (2.13 m) on each side of the paver, for a total of 14 feet (4.27 m) of automatic frame widening. • The smart cylinders on the GP4 provide the width reference to the G+® controller and uses that information for steering setup and individual track speed control through radii. • The GP4’s smart leg positioning includes rotary-sensored slew drives on the pivot arms of each of the paver’s four legs. The smart pivots on the legs provide the G+ control system with information on the angle of rotation and work together with the track rotation sensors to maintain the tracks in the straight-ahead line for steering. • Rotary-sensored slew drives are also located on each of the slipform paver’s four tracks for the ultimate in smart steering technology and extreme steering with the tracks having the ability to rotate farther than ever before. • The GOMACO GP4 easily turns radii with smart leg positioning and smart track rotation. • The GP4 slipform paver has been designed for easy transport. The paver can be switched to the transport mode by simply driving the legs around to the transport position. The operator can take this paver to the transport mode in minutes without assistance.
