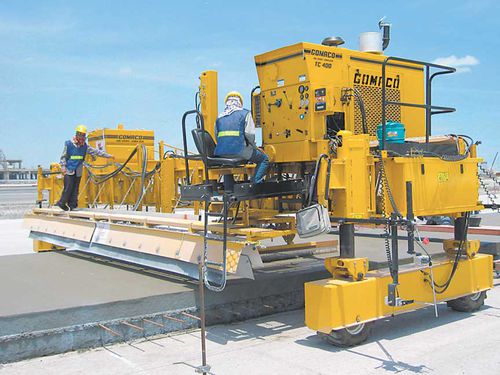

Texture curing machine T/C-400

Versatility is provided with GOMACO’s texturing/curing machines. Versatility with one machine... texturing, curing, poly-roll, and burlap/astroturf drag. • The T/C-400 frame permits width adjustments from 12 feet (3.66 m) to 48 feet (14.63 m), contact the factory for wider width needs. • The T/C-400 features two end cars, each having two hydraulically powered foam-filled rubber flotation tires. • A central operator station and power supply provides hydraulic control from one location. • Available with the GOMACO exclusive G+® digital control system. • An optional power transition adjuster (PTA) hydraulically adjusts for crown height and permits on-the-go crown adjustments. • Curing assembly includes a reservoir with hydraulic motor, pump, and controls. The spray bar has nozzles spaced 12 inches (305 mm) apart and adjustable height above the surface of the concrete for even coverage. The optional transverse curing system allows you to simultaneously texture and cure, saving you time and money. • The texturing assembly travels transversely across the width of the concrete slab. Carriage speed is variable, up to 168 feet per minute (51 mpm). Texturing wire tine members automatically pivot to trail at the end of each pass, and adjustable pressure on surface contact between the texturing member and the concrete controls the depth and angle of the wire tines. Longitudinal texturing is available where required by project specifications. • Extra versatility is provided with an optional burlap/astroturf drag or poly-roll which hydraulically lowers for the texturing process and raises off the slab for the curing operation.
