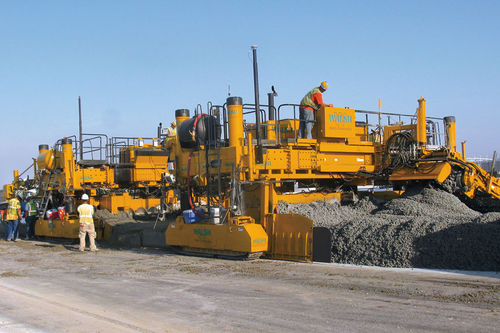

Concrete spreader PS-2600

concrete spreader
concrete spreader
concrete spreader
concrete spreader
concrete spreader
concrete spreader
concrete spreader
concrete spreader
concrete spreader
concrete spreader
concrete spreader
Add to favorites
Compare this product


Description

High-Volume Placing & Spreading • The GOMACO PS-2600 is built for maximum placing and spreading productivity in central-mix operations. • The GOMACO exclusive G+® control system features self-diagnostics for front and rear grade, cross slope, steering, reverse steering, and spreading accuracy and ease of operation. The sensors on the placer/spreader operate off the same stringline as the paver. • Equipped with G+ ConnectTM for simple connections to 3D guidance. • A counter-rotation feature also provides a 360 degree turning radius within the machine’s width. • The five foot (1.52 m) wide GOMACO-designed conveyor system is built with the strength and durability to catch the concrete load from end-dump trucks. • The drive system for the conveyor belt has the capacity to run the 22 foot (6.71 m) long conveyor belt to nearly 500 feet per minute (152.4 mpm), allowing the trucks to unload quickly. • The conveyor deflector directs the flow of concrete at the discharge end of the conveyor. • The symmetrical design of the conveyor allows it to be mounted on the left or the right side, depending on jobsite logistics. • Spreading width up to 32 feet (9.75 m). Material is moved with a 20 inch (508 mm) diameter, hydraulic, split, reversible auger. • Hydraulically pressure-compensated sideplates provide edge control and a spreading depth up to 19 inches (483 mm). • The belt frame is hinged and can hydraulically raise and lower to allow trucks to pass by. • Placing and spreading concrete with the two-track GOMACO PS-2600 in front of a slipform paver helps provide high production and positive rideability results.
