Description

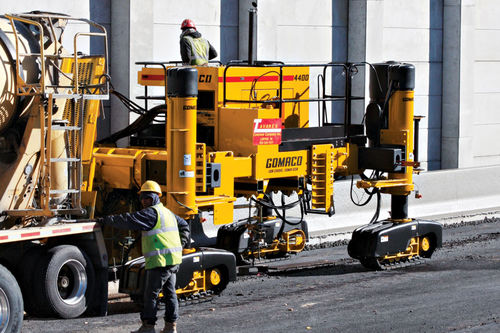

True Right-Side and Left-Side Slipforming GOMACO U-shaped operator's platform, with vibration isolation, puts the operator comfortably on top of the action. Control console slides from side-to-side for ultimate operator control. When not in operation, the console locks safely away in center position. New proprietary G+® control system operates in multiple languages. Power-optimized Cummins QSB3.3, 99 hp (74 kW) diesel engine. Hydraulic leg height adjustment of 36 inches (914 mm), manual adjustment of eight inches (203 mm). Piston-style legs with bearings on both ends of the inner tube eliminate steel on steel contact. Steel keyway on cylindrical inner tube provides steering control. GOMACO-exclusive trailing stainless steel for a superior finish. Barrier Hook-and-Go mold mounting system for barrier up to 39.4 inches (1000 mm) tall. (Side-mount option available for taller or existing profiles.) Track circuits provide up to 37 feet per minute (11 mpm) operating speed and up to 98 feet per minute (30 mpm) for job-site mobility. Front and rear telescoping legs on both sides. Industrial strength molded leg caps provide component protection. 4400 series auger built with pitch and speed designed specifically for low-slump concrete. 16 inch (406 mm) diameter auger. Four-way hydraulic positioning allows perfect placement of the auger for concrete receiving and delivery to the mold on either side of the 4400. 1. Pivoting Tilt 2. Pivoting Swing 3. Longitudinal Slide 4. Sideshifting Optional molds available for barrier, parapet, curb and gutter, and sidewalk.
