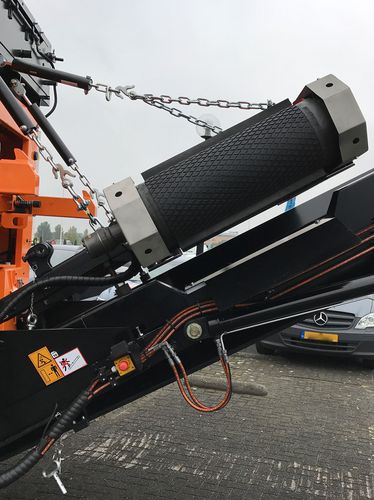

Overband magnetic separator ROP-F series

liquidsmetalfor the recycling industry

Cost effective solution. Suitable for thin to thick layers and do not require a control box. Very reliable and available in many belt widths. Available in transverse or in-line versions for installation above your conveyor belt or end pulley. Cross or inline version For belt width 400-1600 mm Easy to install Permanent magnet Max. installation height 450 mm Application An overbelt magnet is suitable for removal or separation of high volumes of iron or steel and hangs above a flat- or trough-shaped conveyor. This type of magnet is self-cleaning and continuously separates (ferromagnetic) Fe parts from material streams. The iron removal efficiency of overband magnets ranges from 70 to 90%. This depends on magnet design, product flow and placement. Automatic self-cleaning overband magnetic separators are suitable for both the recovery (recycling) of ferrous parts and the removal/elimination of impurities (iron contaminants). These magnets are mainly suitable for coarser fractions with pieces larger than 10 mm. Thanks to the robust, reliable technology, these magnets have applications in many industries. Putting a permanent overbelt magnet in service requires nothing more than four suspension points, sufficient space and power to drive the conveyor belt.
