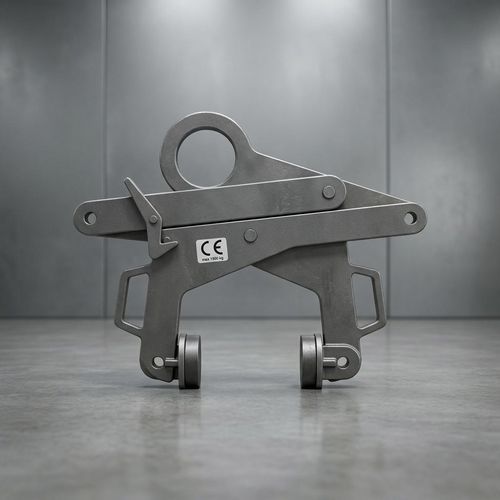

Stone lifting clamp T500.140

slabblockvertical

Overview
Stone lifting clamp for handling stone pieces and similar materials. Engineered for secure, efficient lifting operations in construction and industrial sites. Designed and manufactured by GOYDU in Galicia for use where safe manipulation of blocks and stone pallets is required.

Models and specifications
Model | Total length (mm) | Total height (mm) | Jaw height (mm) | Jaw width (mm) | Weight (kg) | Max load
T500.140 | 490 | 415 | 150 | 140 | 14 | 500 kg
T900.440 | 760 | 515 | 260 | 440 | 29 | 900 kg
T1300.650 | 975 | 555 | 300 | 650 | 35 | 1,300 kg

Highlighted dimensions

• Total length: 490 mm (model T500.140)
• Total height: 415 mm (model T500.140)
• Jaw height: 150 mm (model T500.140)
• Jaw width: 140 mm (model T500.140)

Technical description

• Application: lifting and handling of stone pieces and similar loads
• Construction: steel components designed for safe handling and operational efficiency
• Available variants: T500.140, T900.440, T1300.650 (each with specific capacities and dimensions)
• Load capacities: 500 kg, 900 kg and 1,300 kg depending on model

Characteristics / technical specifications

• Commercial name: T500.140
• Brand: GOYDU
• Displayed model: T500.140 Stone lifting clamp
• Total length (T500.140): 490 mm
• Total height (T500.140): 415 mm
• Jaw height (T500.140): 150 mm
• Jaw width (T500.140): 140 mm
• Weight (T500.140): 14 kg
• Max load (T500.140): 500 kg
• Displayed price: 580.00 EUR (unit)
