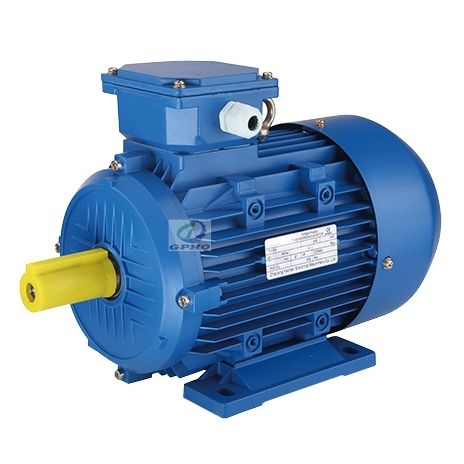

AC motor YE2
induction380 VIP55

AC motor
AC motor
AC motor
AC motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
induction
Voltage
380 V
Protection class
IP55
Efficiency classes
IE2
Power

0.55 kW
(0.748 hp)

Description

GPHQ YE2 IE2 high efficiency motor YE2 ac electric motor low speed high torque motor standard three phase induction motors are totally enclosed fan cooled squirrel cage motors that are manufactured with new material and technology. It is a new generation motor and can save energy. YE2 ac electric motor low speed high torque motor center height: H80-H355, output: 0.55kW, pole: 2, 4, 6, 8, degree of protection: IP55, cooling method: IC411, mounting dimension conform to IEC standard, rated voltage: 380V, rated frequency: 50Hz, ambient temperature: 40°C max, altitude: 1000m, duty: S1. YE2 ac electric motor low speed high torque motor have some notable advantages such as high efficiency, good starting performance, low noise, improved structure, improved cooling capabilities. This series motors are used for general motors and can be used to drive all kinds of general purpose machines such as compressors, ventilators, pumps, petorl chemical,medical, chemical industries and mining etc. For other special requirement please contact our sales department.

Catalogs

No catalogs are available for this product.

See all of GPHQ‘s catalogs
