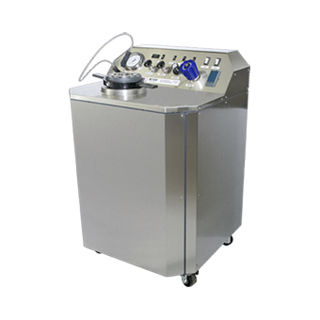

Curing unit M7450

Affordable, Dependable Compressive Strength Testing The Grace Instrument M7450 Curing Chamber is specifically designed to cure standard two-inch cement cube samples for compressive strength testing in accordance with API and ISO standards for oilfield cements. The user is able to specify conditions of temperature and pressure in order to simulate a wide variety of downhole conditions during the curing process. Engineered to achieve highly repeatable test results Test sequences can be created to monitor sample behavior under changing environmental conditions, as well. The curing chamber system design optimizes operator safety by emphasizing pressure relief and protection from high temperatures, and the panel button and handle configuration has been designed to maximize both safety and ease of use. A Slurry Mold Design That Saves Time...and Resources The slurry mold has been designed to be light weight and to allow smooth insertion of the thermocouple. This allows the operator to complete test steps more quickly and with less cleanup, optimizing the Setup-Test-Clean cycle and maximizing efficiency. Dimensions: 46" height x 30" width x 28" depth Weight: 500 lbs. Temperature Range: Ambient to 700°F Pressure Range: Atm. to 3,600 psi (optional 5,000 psi) Operating Temperature: 32 - 105°F Heater Power: 6,000 W Current: 240V, 50Hz or 60 Hz Compressed Air: 50 - 100 psi • Light-weight slurry mold • Hardware specifications conform to API standards • Test sequences can be created or edited by users to perform testing under a wide variety of simulated downhole conditions • Slurry mold design allows quick thermocouple insertion and withdrawal
