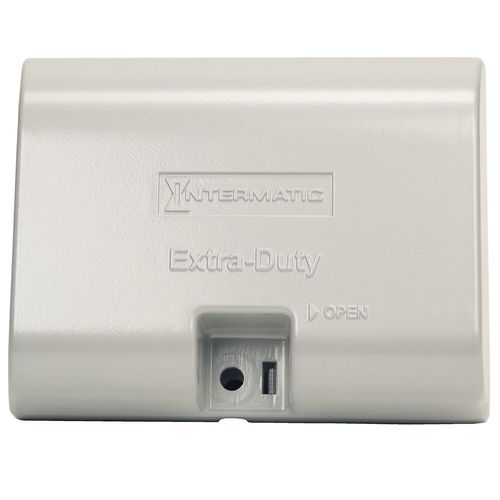

Wall-mount enclosure WP1010 series

rectangularcast aluminumindustrial

Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications. Features • Complies with 2017 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications • Exceeds CEC Article 26-702 • UL Certified for Type 3R outdoor enclosures • Meets requirements for cold impact testing: -60° F (-51° C) • Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts • 1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws • Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank • Impact rated: 12 lbf. impact test to ensure cover remains intact • Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test • Warranty: 1-year limited • Three inserts provided with all models that allow each model to meet multiple installations (up to 8 configurations) • Max cord size: #12 AWG or smaller Applications • Industrial • Commercial • Manufacturing • Residential • Agricultural • Signage • Athletic Fields • Municipalities
