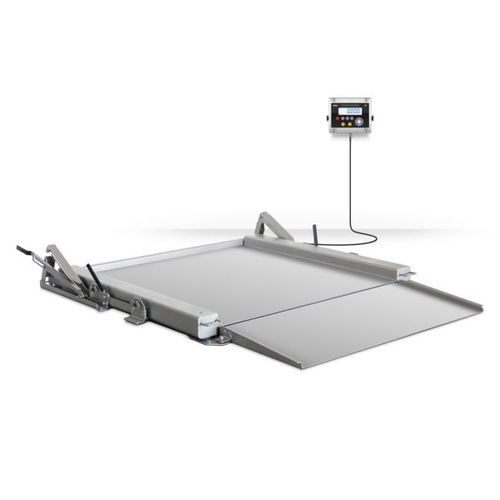

Platform scale Gram Next Xtrem Crocodile S - M
lbozkilogram

Platform scale - Gram Next Xtrem Crocodile S - M - Gram Group - lb / oz / kilogram
Platform scale - Gram Next Xtrem Crocodile S - M - Gram Group - lb / oz / kilogram
Platform scale - Gram Next Xtrem Crocodile S - M - Gram Group - lb / oz / kilogram - image - 2
Platform scale - Gram Next Xtrem Crocodile S - M - Gram Group - lb / oz / kilogram - image - 3
Platform scale - Gram Next Xtrem Crocodile S - M - Gram Group - lb / oz / kilogram - image - 4
Platform scale - Gram Next Xtrem Crocodile S - M - Gram Group - lb / oz / kilogram - image - 5
Platform scale - Gram Next Xtrem Crocodile S - M - Gram Group - lb / oz / kilogram - image - 6
Add to favorites
Compare this product

Characteristics

Type
platform
Unit of measurement
lb, oz, kilogram
Display
with separate indicator, digital
Communication
RS-232, WiFi
Power supply
380 V
Material
stainless steel
Protection level
IP68
Applications
for pallet trucks
Other characteristics
four-cell
Weight range

300 kg, 600 kg, 1,500 kg
(661.4 lb, 1,322.8 lb, 3,306.9 lb)

Resolution

100 g, 200 g, 500 g
(3.53 oz, 7.05 oz, 17.64 oz)

Weighing plate length

800 mm, 1,000 mm, 1,200 mm, 1,500 mm
(31.5 in, 39.4 in, 47.2 in, 59.1 in)

Weighing plate width

800 mm, 1,000 mm, 1,200 mm, 1,500 mm
(31.5 in, 39.4 in, 47.2 in, 59.1 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -10 °C
(14 °F)

Weight

Max.: 222 kg
(489.43 lb)

Min.: 118 kg
(260.15 lb)

Description

Hygienic weighing with legal approval • Digital scale with CE-M Verification for legal use and 2 x 3000-division ranges. • Robust, very low height platform (45 mm) with fully digital Xtrem® weighing core. • Effortless, cushioned lifting for easy cleaning of the bottom without fluid build-up. • Polished with beads with closed lower structure in 304 stainless steel, complies with HACCP guidelines. • Class C3 sensors with IP68 protection. • Highly reliable with Z Link® communication technology and Xtrem® digital core. • Fully autonomous, data sent to an indicator, PC, tablet or Android smartphone (1). • Maximum safety: important adjustment and calibration data incorporated in the platform are armoured. • Web Server to send data to Chrome, Edge and Safari browsers. • Total flexibility: Data sent by cable, Ethernet (2), WiFi (2) or RS485 (2). • Prepared for high connectivity (Industry 4.0). (1) With Wi-Fi option. (2) Optional View the data on a smartphone Our Xtrem® equipment with WiFi option sends the data directly from the platform to a smartphone using our Android app, directly and without an indicator, from the weighing platform to the smartphone. It’s that easy. Z Link® secure digital connectivity • Multiple connection options with indicators, PC software and Android smartphone. • Fully digital platforms that include all data in its internal Xtrem® module. • Greater safety and reliability due to digital communication between platform, indicators and PC or Android software. • Data sent directly to PC or smartphone by optional WiFi in the platform’s own Xtrem® module. • Connection of multiple platforms via Wi-Fi or Ethernet router, for central management.
