Digital scale Gram Next Xtrem Bengal
platformlboz

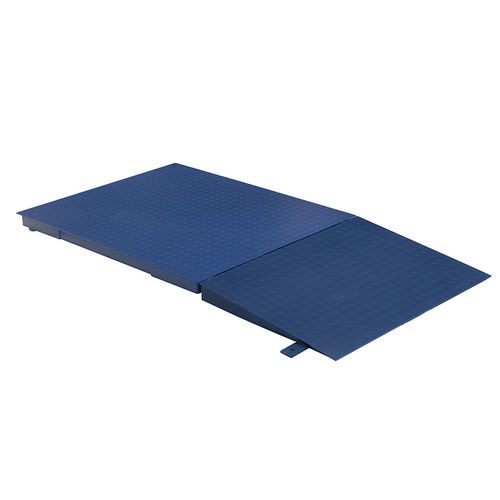

Digital scale - Gram Next Xtrem Bengal - GRAM - platform / lb / oz
Digital scale - Gram Next Xtrem Bengal - GRAM - platform / lb / oz
Digital scale - Gram Next Xtrem Bengal - GRAM - platform / lb / oz - image - 2
Digital scale - Gram Next Xtrem Bengal - GRAM - platform / lb / oz - image - 3
Digital scale - Gram Next Xtrem Bengal - GRAM - platform / lb / oz - image - 4
Digital scale - Gram Next Xtrem Bengal - GRAM - platform / lb / oz - image - 5
Digital scale - Gram Next Xtrem Bengal - GRAM - platform / lb / oz - image - 6
Add to favorites
Compare this product
Go to the GRAM website for more information

Characteristics

Type
platform
Unit of measurement
lb, oz, kilogram
Display
with separate indicator, digital
Communication
RS-232, WiFi
Power supply
380 V
Material
steel
Protection level
rugged, IP67
Applications
industrial, for pallet trucks
Configuration
floor
Other characteristics
precision, four-cell
Weight range

1,500 kg, 3,000 kg
(3,306.9 lb, 6,613.9 lb)

Resolution

500 g, 1,000 g
(17.64 oz, 35.27 oz)

Weighing plate length

1,200 mm, 1,500 mm, 2,000 mm
(47.2 in, 59.1 in, 78.7 in)

Weighing plate width

1,000 mm, 1,200 mm, 1,500 mm
(39.4 in, 47.2 in, 59.1 in)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 40 °C
(104 °F)

Height

Min.: 106 mm
(4 in)

Max.: 131 mm
(5 in)

Weight

73 kg, 84 kg, 103 kg, 122 kg, 155 kg
(160.94 lb, 185.19 lb, 227.08 lb, 268.96 lb, 341.72 lb)

Description

• Platform with fully digital Xtrem weighing core. • 2-layer epoxy coating, Class C3 sensors and IP67 protection. • Fully autonomous, data sent to an indicator, PC, tablet or iOS or Android smartphone*. • Maximum safety: important adjustment and calibration data incorporated in the platform. • Connects to WiFi network* and sends the data to any equipment connected to the IP network. • Total flexibility: Sends the data via cable and WiFi. Resilient The 4,5-mm top surface gives it sufficient strength for daily use. Practical With its RM ramp suitable for hoisting pallets with hand pallet trucks. Xtrem Technology Xtrem module with built-in digital weighing technology
