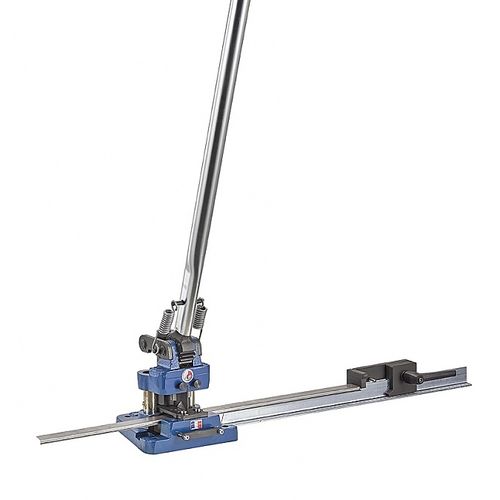

Manual punching machine GH3-M

lever-operatedfor DIN railshearing

MANUAL Shearing-Punching machine for DIN rails Each machine is supplied with 1 blade and 2 standard 6.5 X 13 mm punches, one 1m20 straightedge, endstop and stand. The dies are chosen according to the rails to be cut (see table below). Tooling can be quickly switched over, with no need for a spanner. Head weight : 15 KG Max. profile dimension : 37 X 18 mm Dies to be chosen according to the rail to be cut : for symmetrical 35 X 15 X 1.5 rails, choose dies reference M33. Kit for transforming into GH3-E ou GH3-P available.
