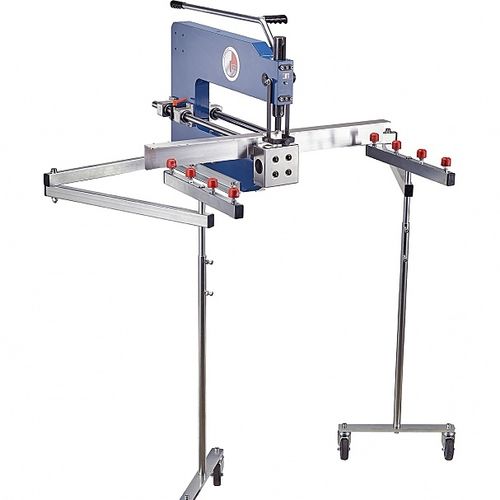

Door punching machine CT2-M

portable

Punching machine for electrical doors, panels, boxes, cabinets THIS MACHINE IS VERY SIMPLE TO USE : THE RETRACTABLE CENTRING PIN INTEGRATED INTO EACH PUNCH MAKES FOR QUICK, SAFE PUNCHING. The articulated arms with castors effortlessly moves the doors (up to 1000X2000 mm) within the frame overhang. A guide rule available as an option makes it possible to line up the rows of holes or the rectangular cut-outs by nibbling. - Weight : 110 KG - Depth of the frame overhang : 510 mm - Punching capacity : 2 mm max. on steel for diameters of from 5 to 22.5 mm and square of 45.3X45.3 mm 1.5mm. for diameters of from 25.5 to 60 1.2 mm max. on stainless steel 4 mm in plastic or polyester
