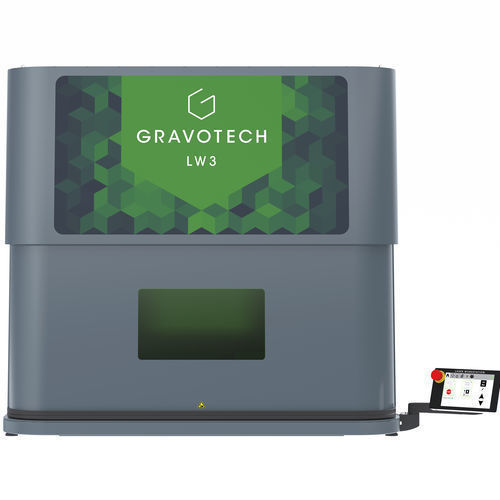

Laser marking machine LW3 GREEN

paperwoodmetal

Product overview
The Gravotech LW3 is a Class 1 industrial laser workstation designed for direct part marking of large and heavy components. Compatible with Fiber, MOPA, Hybrid/DPSS and Green sources, the LW3 combines a large internal envelope (up to 628 mm height) with automation and operator-safe enclosure for high-precision marking in production environments.

Key benefits

• Large marking capacity: standard marking area 300 x 300 mm, ZX bridge option extends X stroke to enable effective marking up to 875 x 300 mm; internal clearance to accept tall parts (approx. 628 mm).
• Multi-technology compatibility: supports Fiber, MOPA, DPSS/Hybrid and Green lasers to mark metals, plastics and varied surfaces; suitable for DPM, serialisation and multi-level engraving.
• Production-ready design: integrated 7" touchscreen for local job selection, automatic three-sided door with safety sensors, optional trolley for mobility and fixture-friendly metal positioning table.

Highlights

• ZX bridge option to extend effective marking area and X stroke.
• Motorized Z axis (standard 295 mm stroke; 575 mm with ZX) and programmable positioning.
• Automatic 3-sided door: closes at cycle start and reopens on completion; protected observation window for visual monitoring without protective eyewear when safe.
• Optional 3D marking module for sloped or angled surfaces.
• Designed for integration with exhaust/filtration systems for fume and particle extraction.

Typical applications

• Traceability and DPM on large industrial parts (automotive, aerospace, heavy equipment).
• Permanent identification: serial numbers, 1D/2D codes (DataMatrix), batch marking and logos.
• Customization and medium-batch production requiring multi-position or multi-level marking.

Technical specifications

• Model: LW3
• Brand: Gravotech
• Laser sources: Fiber (1064 nm), MOPA (1064 nm), DPSS/Hybrid (1064 nm), Green (532 nm)
• Typical laser powers: Fiber 20W/30W/50W; MOPA 30W/60W; DPSS/Hybrid 10W/20W; Green 5W/10W
• Standard marking area: 300 x 300 mm (lens-dependent); with ZX bridge: up to 875 x 300 mm
• Example lens marking fields: F100 65 x 65 mm; F160 110 x 110 mm; F254 175 x 175 mm; F330 205 x 205 mm; F420 300 x 300 mm
• Max object (L x W x H) approx.: 810 x 720 x 628 mm (dependent on focal length)
• Z axis stroke: 295 mm standard (575 mm with ZX); X stroke (ZX): 575 mm
• Marking speed: up to 4000 mm/s (depends on head and settings)
• Max object weight on table: approx. 50 kg (application dependent)
• Laser safety: Class 1 (door closed); Class 2M when door open (aiming diode)
• Machine dimensions (L x W x H) standalone: 1213 x 1023 x 1120 mm; with trolley/stand: 1213 x 1023 x 2120 mm
• Machine weight (typical): with Z axis ~160 kg; with ZX bridge ~200 kg
• Power consumption (typical): ~800 W; Rated voltage: 100–240 V AC
• Interfaces & software: Ethernet TCP/IP, RS232, USB, terminal block I/O (8 in / 8 out), Lasertrace and Gravostyle™ compatibility
• Options: ZX bridge, 3D module, exhaust/filtration integration, trolley, various lens choices
