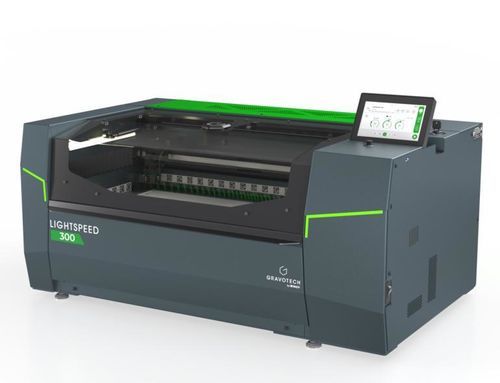

CO2 laser cutting and engraving machine LightSpeed 300

2D laserfor metalfor plastics

Overview
The LightSpeed 300 is a CO2 laser engraving and cutting machine for medium-format production. It offers a 610 x 305 mm work area and axis speeds up to 3.5 m/s, designed for personalization, signage and short-to-medium industrial runs.

Key features

• Laser source: CO2 (multiple power options)
• Work area: 610 x 305 mm
• Max axis speed: up to 3.5 m/s; acceleration up to 4G
• Beam & resolution: fine spot (~0.1 mm), up to 3600 DPI
• Access: L‑door and drawer configurations for ergonomic loading
• Safety: Class 1 ready configurations available

Benefits

• High throughput suitable for small-to-medium series production
• Fast changeover with Quick Switch plates and Click Lens options
• Reduced setup time via touchscreen, Point & Shoot and camera-assisted positioning
• Flexible material handling with optional rotary device and modular accessories

Applications

• Personalization: jewellery, bottles, gifts and promotional items
• Signage and displays: indoor/outdoor panels, nameplates, POS elements
• Light industrial marking: ID tags, equipment labels, traceability marking on coated metals and organics
• Creative production: prototyping, model making, decorative cutting

Accessories & options

• Rotary device for cylindrical parts
• Click Lens magnetic interchangeable lenses
• Quick Switch table system and dedicated plates
• Exhaust/filtration modules and optional Ceramicore® laser source

Technical specifications

• Model: LightSpeed 300
• Laser type: CO2
• Marking area: 610 x 305 mm
• Max speed: up to 3.5 m/s
• Acceleration: up to 4G
• Resolution: up to 3600 DPI; beam spot ≈0.1 mm
• Compatible materials: plastics, wood, glass, leather, organic materials, coated metals
• Connectivity: USB, Ethernet, Wi‑Fi (dependant on configuration)
