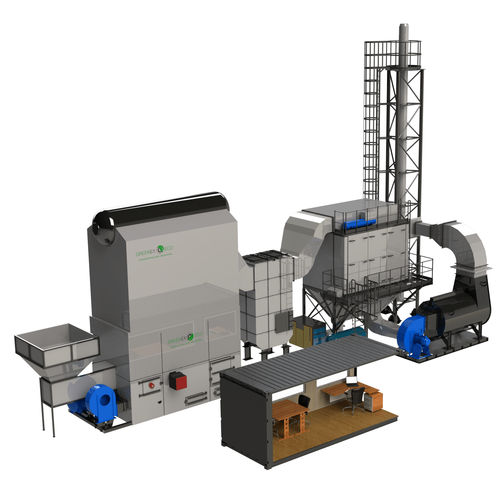

Complex processing of a large amount of biomaterial of organic origin by thermocatalytic decomposition followed by the neutralization of flue gases and the generation of process steam.
1. Control cabin
The PLC programmable logic controller provides control and regulation of more than 20 parameters of the eco complexes.
2. Automatic loading device
Excludes the ingress of flue gases and flames outside.
3. Fan
Provides air supply to intensify the incineration process.
4. Primary chamber
Temperature - 850 ° c.
The chamber is equipped with a system for intensifying the incineration process.
Modern multi-layer chamber lining.
5. Waste heat boiler
Generation of process steam for industrial needs.
6. Economizer
Heating of feed water for the waste heat boiler.
7. Bag filter
8. Exhaust fan
9. Adsorption filter
10. Chimney
