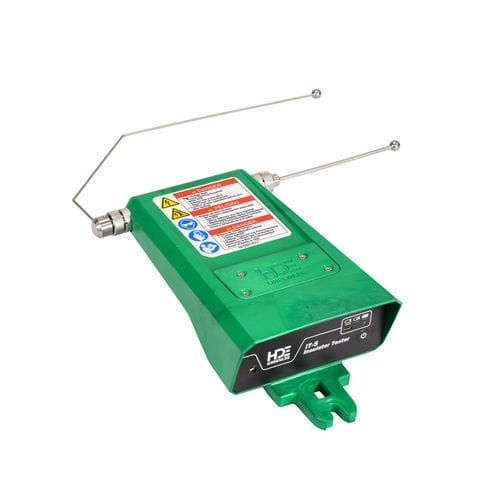

Portable insulation resistance meter IT-5

Product Overview
The IT-5 Insulator Tester provides line crews a quick, concise method to assess porcelain and glass insulators for contamination, conductivity and internal defects on energized or de‑energized lines. It delivers clear visual and audible indication for immediate go/no‑go verification, with simple controls and a universal hot‑stick attachment to fit existing linework tools. The USB‑C rechargeable battery and lightweight balanced housing support efficient field use and easy operator training.

Features

• Instant Read & Audible Buzzer - Multi‑level LED bar and audible buzzer provide immediate go/no‑go insulator status
• Simple Interface - Single on/off control and battery status indicator for straightforward operation
• Lightweight, Balanced Housing - Ergonomic balance reduces operator fatigue and supports stable use on a hot stick
• Universal Hot‑Stick Attachment - Compatible with spline and shotgun hot‑sticks to integrate with existing tools
• USB‑C Rechargeable Battery - Serviceable rechargeable battery with easy field charging
• Backwards Compatibility - Compatible with accessory probes from legacy IT‑4 models to simplify fleet upgrades

Support Documents

• IT‑5 Instruction Manual (8.78 MB)
• IT‑5 Datasheet (2.41 MB)

Specifications

• Sub Brand: HDE
• Type: Insulator Tester
• Model: IT‑5
• Indication Type: Visual and Audible Alert
• Display: LED Bar
• Alert Sound Level: 103 dB @ 10 cm
• Withstand Voltage: 40 kVAC probe to probe
• Operating Temperature: 5°F to 125°F
• Weight: 2.5 lbs
• Dimensions: 11.2 in x 3.4 in x 6.2 in (28 cm x 8.6 cm x 16 cm)
• Charging Cable: USB‑C
• Included: IT‑5, Straight Test Probe, Bent Test Probe, Charging Cable, Case
