Electric crimping tool EK1240SLX

for cable lugsfor connectorsfor wires

Product Overview
The EK1240SLX delivers 12-ton crimping output in a pistol-style, battery-powered tool designed for field use on heavy-duty electrical connectors. Configurable double-tap activation requires two consecutive trigger pulls to start a cycle, reducing unintended actuations during positioning. Ergonomic weight-reduction updates improve handling for repetitive operations. IntelliCRIMP® Technology monitors crimp force on every cycle and issues visual and audible alerts if pressure falls below specification, supporting consistent, UL Classified terminations when used with approved dies and compatible connector brands.

Features

• Extended tool life — Up to 35% longer life versus previous generation.
• Lightweight head — Head is 20% lighter to improve maneuverability and reduce fatigue.
• Improved crimp consistency — Integrated grooved guide maintains ram alignment for repeatable crimps.
• IntelliCRIMP® monitoring — Continuous force monitoring with visual and audible alerts.
• Configurable double-tap activation — Limits accidental cycles during setup.
• Automatic Retraction Stop (ARS) — Retracts only as needed between crimps to shorten cycle time.
• Die compatibility — Compatible with P- and U-style crimping dies.
• Wireless connectivity — Connects to mobile devices for data and diagnostics.

Ordering Information (models / variants)

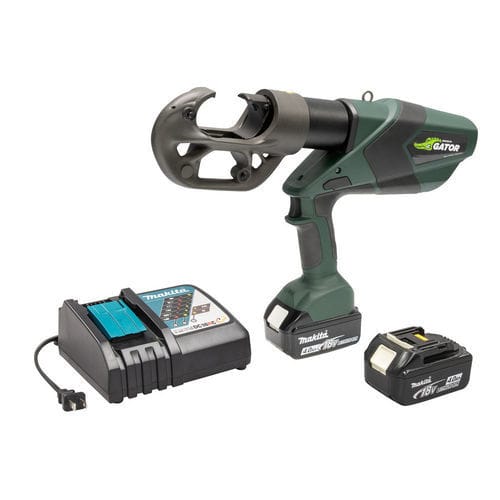

• EK1240SLX11 — Lightweight 12 Ton Crimper, 120V Charger, Two 18V 4.0Ah Batteries (standard equipment: 05167 battery; 52178 120V charger).
• EK1240SLX12 — Lightweight 12 Ton Crimper, 12V Charger, Two 18V 4.0Ah Batteries (standard equipment: 05167 battery; 52180 12V charger).
• EK1240SLX22 — Lightweight 12 Ton Crimper, 230V Charger, Two 18V 4.0Ah Batteries (standard equipment: 05167 battery; 52179 230V charger).
• EK1240SLXB — Lightweight 12 Ton Crimper (bare tool only).

Support Documents

• 300102994 EK1240SLX Operation Manual English.pdf (1.58 MB)
• G1113 EK1240SLX Datasheet Final ADA.pdf (2.58 MB)
• Warranty & Return Policy (referenced document)

Specifications
Sub Brand: Gator
Type: Die-style crimper (pistol-style)
Application: 12-ton crimping for heavy-duty electrical connectors
Standard: C/US UL Classified (with approved dies)
Wire size: 8 AWG - 750 Kcmil (Cu & Al)
Opening size: 1.65 in (42 mm)
Overall length: 16.25 in (413 mm)
Crimping force: 24,000 lbs (106 kN)
Crimping capacity: up to 750 Kcmil (MCM) Cu & Al
Connector type: Color-coded lugs and splices
Weight: 13.5 lb
Power: Makita® batteries (examples: 18V 4.0Ah included in select kits)

Technical specifications

• Output: 12-ton crimping force (24,000 lbs / 106 kN)
• Crimping capacity: up to 750 Kcmil (MCM) for copper and aluminum
• Wire range: 8 AWG to 750 Kcmil (Cu & Al)
• Opening size: 1.65 in (42 mm)
• Overall length: 16.25 in (413 mm)
• Weight: 13.5 lb
• UL Classified when used with approved dies (cross-compatible with Burndy®, Anderson®, Blackburn®, ILSCO®, Thomas & Betts®, Panduit®, Penn Union®)
• IntelliCRIMP® monitoring with visual and audible alerts
• Configurable double-tap activation to reduce unintended actuation
• Automatic Retraction Stop (ARS) to reduce cycle time
• Compatible with P- and U-style crimping dies
• Powered by Makita® batteries (kits vary by charger voltage)
