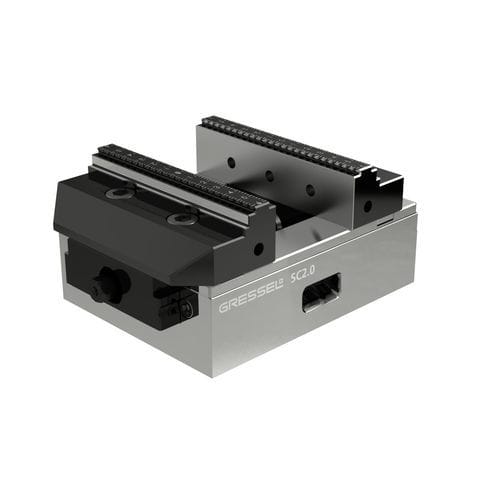

Machine tool vise SC2.0 series

singlemodularmachining

The SC2.0 single clamping vise is the ideal addition for very precise finished part processing with its fixed jaw. In combination with the C2.0 centric clamp, it is ideal for use on tombstones, pallets or pyramids. The fixed jaw enables very high angular accuracy to be achieved when machining finished parts. Customer benefits: High angular accuracy (fixed jaw) and repeat accuracy Ideal for OP10 and OP20 machining in combination with the centric clamping vise C2.0 Same base body as the C2.0, ideal for automation on pallets and tombstones Low maintenance, the SC2.0 can be cleaned in seconds Nickel-plated base body for optimum corrosion protection Cross slot for fixed jaw, workpiece contact with fixed jaw Wide range of jaws, movable jaws from the C2.0 modular system Advantages that will ✓ Closed system Protection against contamination, insensitive to chips and high functional reliability ✓ High clamping force and large clamping range Clamping range up to 448 mm ✓ High accuracy Repeat accuracy +/- 0.01 (80+125) / +/-0.015 (160) Angular accuracy +/-0.01 (80 + 125) / +/-0.015 (160) ✓ Quick jaw change with just 2 screws Quick conversion to large span width, simple jaw interface = own jaw production possible ✓ Scale / scaling – Help for positioning the system jaws and the workpiece ✓ Long service life – The base body of the SC2.0 is nickel-plated
