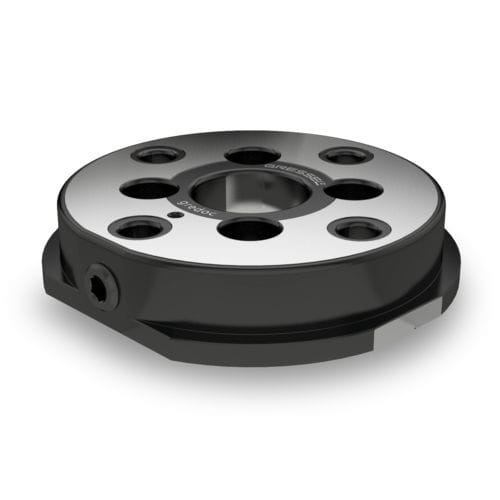

Quick zero-point clamping system gredoc

roundflat

Flat and with an overall height of only 30 mm, mechanical zero point clamping system with a solid locating pin and high pull-in force of 20 kN per locating pin. Clamping is mechanical in four versions, 1-fold module round and angular, 2-fold and 3-fold module angular. Quick and easy to change Repeat accuracy 0.01 mm Pull-in force 20 kN per locating bolt Rust-free and low-maintenance system Solid mounting bolt only 1 type of mounting bolt for all variants Locating bolt can be mounted from above and below Holding force of mounting bolt M10 / 45 kN - M12 / 65 kN only 30 mm high centered clamping possible without intermediate plate Guarantees shortest set-up times there are no limits to flexibility Advantages that will will inspire you ✓ Fast, precise and tilt-free set-up Simple and quick set-up No risk of tilting Highest repeat accuracy < 0.01 mm ✓ Flat zero-point clamping system Insensitive to chips and cooling lubricants Clearances for easy cleaning, higher tilting rigidity ✓ Solid mounting bolt Mounting bolt can be mounted from above and below Stud centering Ø25 H7, compatible with the leading zero-point clamping systems
