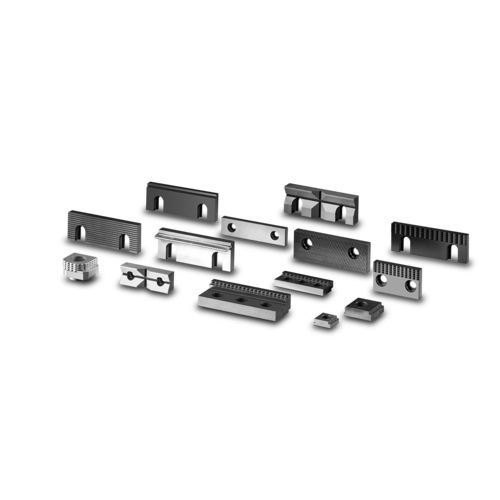

Workpiece clamping jaw

aluminum

Largest clamping jaw program on the market. Over 130 top jaws in jaw widths 22 / 40 / 65 / 80 / 100 / 125 / 160 mm. Many of our high-quality jaws are of course compatible with our GRESSEL clamping systems. We always have the right clamping jaw for you! GRIP jaws for all materials Coated jaws for finished part clamping First and second side clamping Workpiece blank clamping with GRESSEL spring leaf pull-down jaws Rational multiple clamping with floating center jaws Two-sided machining with precision pull-down jaws GRIP jaws for all materials Soft aluminum and plastic low denting gentle for soft material Unhardened material (up to 22 HRC) concave milled profile hardened and burnished Hardened material (up to 58 HRC) patented carbide-grip jaws Carbide pins 92 HRC Workpiece blank clamping with GRESSEL GRIP jaws GRIP jaws Advantages reduced production and unit costs shortened throughput times Low material loss by reducing the clamping depth to, for example, 3 mm high retention forces: Increase compared to standard top jaws by a factor of 3 to 5 no breakout of grip teeth due to stable, geometrically supported profile Blanks with very hard scale layer can be clamped securely without wear of the profile the concave shape of the teeth creates a large-surface connection between the workpiece and the profile Vibration-resistant due to optimum combination between high clamping force, positive locking and profile geometry no additional operation and no embossing station necessary, as the embossing takes place during clamping Design hardened and burnished concave milled profile (outer jaw ends contact the workpiece first)
