Pneumatic tool changer SHW-P

roboticmechanically-actuated

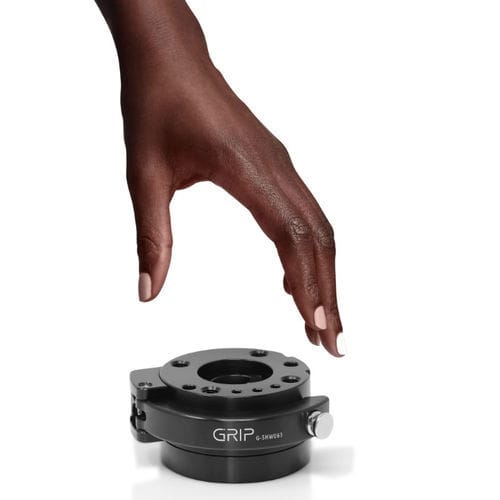

The SHW Connector is a manual end of arm tool changer with integrated air feed-throughs and an optimized locking mechanism. The tool changer consists of a cylindrical bolt which locks the upper and lower assembly together. A centering disc can be installed on both the upper assembly (robot side) and lower assembly (tool side) of the robot and ensures that the tools are correctly aligned with the robot arm. SHW Connector Advantages: Integrated pneumatic feed-throughs Interface according to DIN EN ISO 9409-1 High repeatability < 0.02 mm Durable – over 5000 application changes with no loss in accuracy Withstands high loads with low dead weight Toolless due to integrated operating lever Improved operating lever with pure folding movement Intuitive operation: can be released and closed with one hand Lightweight made of high-strength aluminum, anodized Integrated mounting surface for energy feed-through Locking pin secures the hand lever against unintentional release high-strength aluminum quickly intuitively with one movement secure
