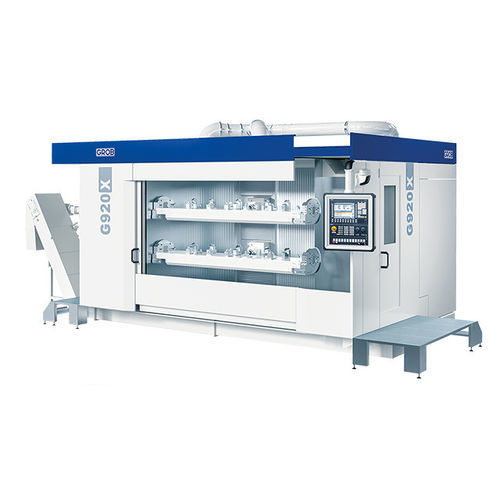

3-axis CNC machining center G920X

verticalfor aluminumHSK A-63

Overview
The G920X is a machining center developed for efficient processing of extruded metal profiles (primarily aluminium). It combines two vertically arranged spindles on rigid bridges with linear axes to ensure stable, precise and automatable machining across a wide range of profile geometries.

Main features

• Optimized for aluminium/extruded metal profiles
• Two vertically arranged spindles and rigid bridge construction
• Linear X, Y and Z axes drive the machining spindles
• Optimized temperature management for process stability
• X, Y and Z axes with tuned dynamics and rigidity
• Designed for automated loading and integration
• Intelligent clamping concept specific to profile machining
• Max. part size: 2 x Ø 600 / 2 x L 2,600

Automation

• Robot automation: front or top loading
• Configurable automation solutions to match customer workflows
• Direct loading into the work area via double gripper
• Integration of accompanying processes (deburring, washing, marking)
• Standardized components for fast installation and short commissioning

Linear gantry option

• Fully automated direct top loading
• High efficiency through simultaneous movement of horizontal and vertical levels
• Top loading leaves ground-level access to the machine
• Optional telescopic version for low hall heights

Typical machining operations
Designed for drilling, milling, slotting and end machining of aluminium extrusions and similar profiles in automated production environments; offers flexibility for varied profile geometries.

Technical specifications

• Model: G920X
• Manufacturer: GROB-WERKE GmbH & Co. KG
• Spindles: 2 vertically arranged spindles
• Machine design: particularly rigid construction for high stability and reliability
• Axes: Linear X, Y, Z axes with optimized dynamics and rigidity
• Temperature management: optimized concept for process stability
• Clamping: intelligent clamping concept for profile machining
• Automation readiness: robot automation and linear gantry options available
• Max. part size: 2 x Ø 600 / 2 x L 2,600
• Primary material focus: aluminium and other extruded metal profiles
