Truck-mounted crane H 32
self-erectingfor constructionlifting

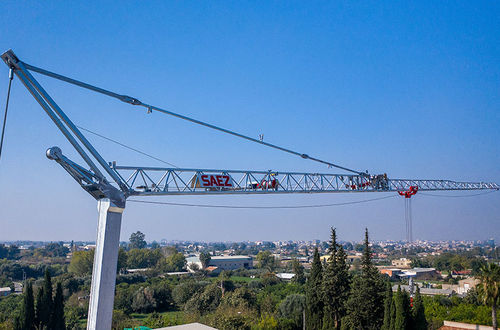

Truck-mounted crane - H 32 - Gruas Saez - self-erecting / for construction / lifting

Truck-mounted crane - H 32 - Gruas Saez - self-erecting / for construction / lifting - image - 2

Truck-mounted crane - H 32 - Gruas Saez - self-erecting / for construction / lifting - image - 3

Truck-mounted crane - H 32 - Gruas Saez - self-erecting / for construction / lifting - image - 4

Truck-mounted crane - H 32 - Gruas Saez - self-erecting / for construction / lifting - image - 5

Add to favorites

Compare this product

Characteristics

Configuration

truck-mounted

Structure

self-erecting

Operating environment

for construction

Applications

lifting, loading, for heavy-duty applications, handling, transport

Other characteristics

hydraulic

Load

Min.: 950 kg
(2,094.4 lb)

Max.: 4,000 kg
(8,818.5 lb)

Max load at max radius

1,000 kg
(2,205 lb)

Horizontal reach

Min.: 10.5 m
(34'05" )

Max.: 32 m
(104'11" )

Driving speed

10 km/h, 25 km/h
(6.2 mph, 15.5 mph)

Crane engine power

7.5 kW
(10.2 hp)

Swing speed

0.3 rpm, 0.5 rpm, 0.8 rpm
(1.885 rad.min-1, 3.142 rad.min-1, 5.027 rad.min-1)

Description

The self-erecting H 32 boasts all the advantages of its smaller sister crane, the H25. This crane’s ability to automatically assemble and disassemble without the need of an additional crane, makes it a highly valued addition on a job with a clearly defined work space with relatively low construction heights. SAEZ always considers the importance of the ease of transport, whether by sea or road, and so the H 32 self-erecting has been designed to fit in 2x HC containers, and can also be moved by road thanks to the option to fit an axle and wheels. The jib extends to 32m, and can load up to 1000kg at the tip. Maximum capacity is 4000kg.
