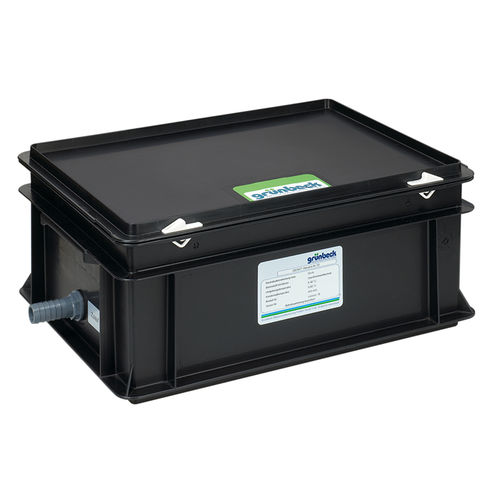

Wastewater treatment neutralization plant GENO®-Neutra N-210

wastewater treatment neutralization plant
wastewater treatment neutralization plant
wastewater treatment neutralization plant
Add to favorites
Compare this product


Characteristics

Applications
for wastewater treatment

Description

GENO®-Neutra N-210 is a flow neutralisation system for condensates from gas condensing boilers (DVGW VP 114). The condensate volume is up to 1,500 kW or 210 l/h. In the N-210 model, the fill volume of neutralisation granules can be variably adapted to the boiler capacity. The system consists of a neutralisation tank made of plastic with an integrated sedimentation zone for impurities. The neutralisation granules are topped up as needed. The equipment includes pH indicator strips, connection hose, connection material and a first batch of neutralisation granules. Neutralisation of condensation from gas condensing boilers Condensate volume up to 1500 kW or 210 l/h Variable fill quantity of neutralisation granules DVGW-certified Installation requirements The technical specifications of the system and the regulations for discharge to the public sewage system according to ATV- DVWK - worksheet A 251, as well as the local and general regulations must be observed. The installation site must be frost-proof and the system protected against chemicals, dyes, solvents, high radiation temperatures and from direct sunlight. Take into consideration that in standard operation, the condensation accumulates to a level of approx. the height of the outlet connection of the neutralisation system. If the condensation is to completely drain from the heat generator or the flue gas system, the installation areas and outlets for the condensation must be provided for accordingly. A drain connection (min. DN 40) must be available for draining the condensation. Scope of supply 1 neutralisation system GENO®-Neutra N-210 as compact system with 1 pack of pH indicator strips 3 hose clamps
