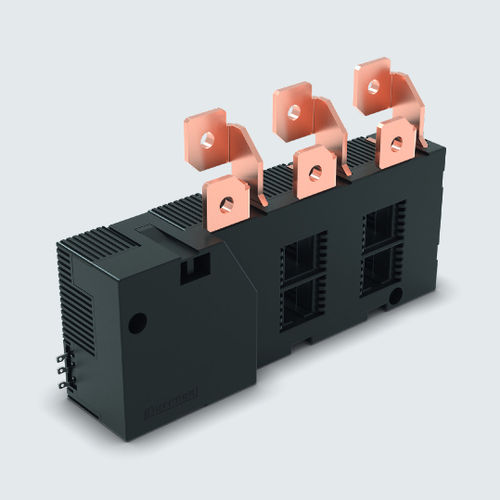

Polarized latching relay for 100 A
Using the H-armature principle the polarised latching relays are noted for their high resistance to shocks and vibrations. They are always in a defined switching position and therefore there is no loss of information in case of power failure. The advantage of polarised latching relays is the pulse driven operation of some milliseconds, coil heating can be neglected. Optionally the relay can also be set by manual operation.
The relays are designed and manufactured in accordance to international standards of IEC 61810 part 1 as well as they meet the short circuit requirements of category UC3 for Supply Control Switches as of IEC 62052 part 31.
Rated voltage 6 – 48 VDC
Rated power 16 W
Operating power to set 10.25 W
Pulse to set 30 ms
Action time < 15 ms
Max. contact arrangement 3 NO
Contact material AgSnO2
Max. switching power 25,000 VA
Max. switching voltage 440 VAC
Max. switching current 100 A
Mechanical life 106
Creepage and clearance distance coil – contact 8 mm
Test voltage coil – contact 4,000 V eff.
Test voltage contact –
Test voltage open contact 1,000 V eff.
Dielectric strength coil – contact 12 kV / 1.2 / 50 μs
Ambient temperature -40 ... +85 °C
Weight 300 g
Conform to VDE, UL, CSA, SEV, SEMKO
