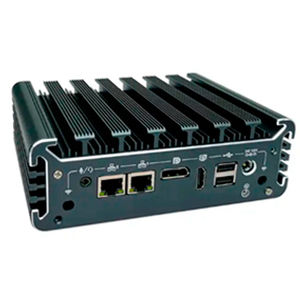

Box PC eNX-i7-8550u-V2

embeddedIntel® Core™ i7-8550UHDMI

INTEL i7 1.8GHZ-4GHZ 8th Industrial PC generation with 8550U processor (Quad Core / 8 threads) . Or ruggedized fanless computer in colored aluminum chassis black, with passive cooling system without use of fans to achieve protection against environments very dusty. It has dual HDMI / DP video output for the connection of 2 monitors HD. Its 2 COM ports can be configured with RS485 protocols/RS422. It has 2 x LAN perfect for Nic Teaming. Anchor Type: Embedded yes, VESA no, RACK no. Processor Frequency: Minimum 1.8Ghz, maximum 4Ghz. Graphics: Integrated Intel UHD 620, Supports DVMT, HDMI and VGA connection. RAM: 0 Gb on Board + 1 SODIMM / 1.35v Socket (4 / 8Gb) ROM: M2 SATA SSD (120, 240Gb / 480GB / 1TB) Audio: Realtek HD ALC662 Line-out and MIC LAN: 2 x Intel i211-AT 10/100 / 1000M. Wake on Lan. PXE IP protection : IP50. The ingress of dust cannot be prevented, but it must not enter a amount such that it interferes with the proper functioning of the equipment. No water protection. Watertight box: To obtain greater IP protection (OPTIONAL) Wireless: Mini PCI Express Intel 7260BN. WiFi 802.11 b / g / n (OPTIONAL) GPS: Mini PCI Express u-Blox pci-5s-1 - 500. (OPTIONAL) 3G / GPS: Mini PCI Express Huawei EM770w. (OPTIONAL) 4G / GPS: Mini PCI Express Huawei ME909u-521. (OPTIONAL). Front SIM Dimensions: 186 x 126.5 x 66 mm (LxWxH) Weight: 1'3 Kg Packing: Individual Box; PC, Power supply, Power cord, Drivers.
